| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 300mm-900mm |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case |
| Delivery Time: | 10-14 days delivery time |
| Payment Terms: | T/T |
| Finishing: | Painting,Other | Type: | Dry And Wet Cutting Diamond Circular Saw Blade |
|---|---|---|---|
| Color: | Customize | Application: | Granite,Concrete,stone,marble |
| Product Name: | Diamond Saw Blade | Advantage: | Heat Resistance,Fast Cutting Speed,durable |
| Usage: | Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting | Feature: | Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge |
| Process: | Laser Welded | Material: | High Quality Diamond |
| Teeth: | 9 10 12 16 | Diameter: | 4.5" 5" 6" 7" |
| High Light: | Even Distribution General Purpose Saw Blades,300mm General Purpose Saw Blades,900mm General Purpose Saw Blades |
||

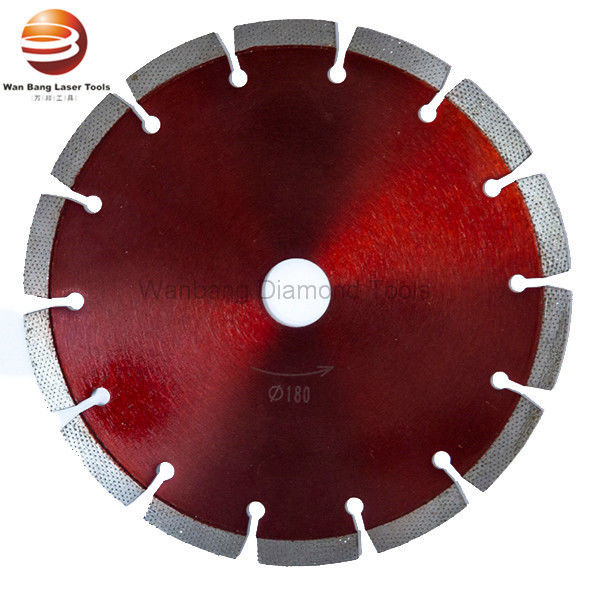

Even Distribution Arix Saw Blades for Cutting Concrete Stone Masonary
High quality diamond saw blades can be used for cutting all kinds of non-metal material: concrete, reinforced concrete, asphalt, refractory materials, marble, granite, tile, ceramic sandstone, glass, and other general construction materials. Diamond cutting saw blades with different specifications from 105mm~3000 mm can be supplied according to customers' requirements.
| Specifications: | |||||
| Diameter | Seg. LxT(mm) | Seg. height | Seg.No. | Cutting Materials | |
| 12" | 300mm | 40*3.0 | 12/15mm | 21 | Concrete/General purpose |
| 14" | 350mm | 40*3.2 | 12/15mm | 24 | Concrete/General purpose |
| 16" | 400mm | 40*3.4 | 12/15mm | 28 | Concrete/General purpose |
| 18" | 450mm | 40*3.6 | 12/15mm | 32 | Concrete/General purpose |
| 20" | 500mm | 40*3.6 | 12/15mm | 36 | Concrete/General purpose |
| 24" | 600mm | 40*3.6 | 12/15mm | 42 | Concrete/General purpose |
| 26" | 650mm | 40*4.0 | 12/15mm | 42 | Concrete/General purpose |
| 28" | 700mm | 40*4.0 | 12/15mm | 45 | Concrete/General purpose |
| 32" | 800mm | 40*4.0 | 12/15mm | 52 | Concrete/General purpose |
| 36" | 900mm | 40*4.5 | 12/15mm | 56 | Concrete/General purpose |
Feature:
- Suitable for wet/dry cutting.
- Light and easily-carried.
- Has smooth and fast cutting speed and long cutting life.
- The teeth are sharp, can be used for a long time.
Application: Reinforced concrete, wall, stone, general construction materials
* Segments with even distribution diamond grits which precisely layout in three dimensional patterns can produce best performance with faster and consistent cutting and longer lifetime
* Dry or wet cutting
* Applicable for table saw, walk-behind saw, handhelded saw, wall saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with drive pin holes standard. Custom arbor sizes are available.
* Other special specifications and colors can be produced by clients' require
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our products including: Laser welded diamond concrete saw blades, asphalt saw cutting blade, granite cutting disc, refractory brick diamond blade, diamond core drill bits for reinforced concrete, diamond grinding cup wheel and diamond grinding shoes, diamond wall saw blade, floor saw blade, ring saw for handheld machine, wire saw for demolition, tuck point blade for grooving.
