| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 500mm |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case |
| Delivery Time: | 10-14 days delivery time |
| Payment Terms: | T/T |
| Type: | Diamond Wet Cut Saw Blade | Color: | Customized |
|---|---|---|---|
| Application: | Reinforced Concrete Highway Cutting, Bridge Demolition, Concrete Structure Cutting | Product Name: | Diamond Saw Blade |
| Advantage: | Fast Cutting Speed,durable Life | Usage: | Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting |
| Feature: | Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge | Process: | Laser Welded |
| Material: | High Purity Diamond,metal Bond And Alloy Steel | Teeth: | 12mm/13mm |
| Diameter: | 16”18" 20" 24" 26" 28"32" 36" 42" 48" 60" 64" | ||
| High Light: | 500mm Diamond Cutting Disc,500mm Cutting Disc For Reinforced Concrete,Diamond Cutting Disc For Reinforced Concrete |
||

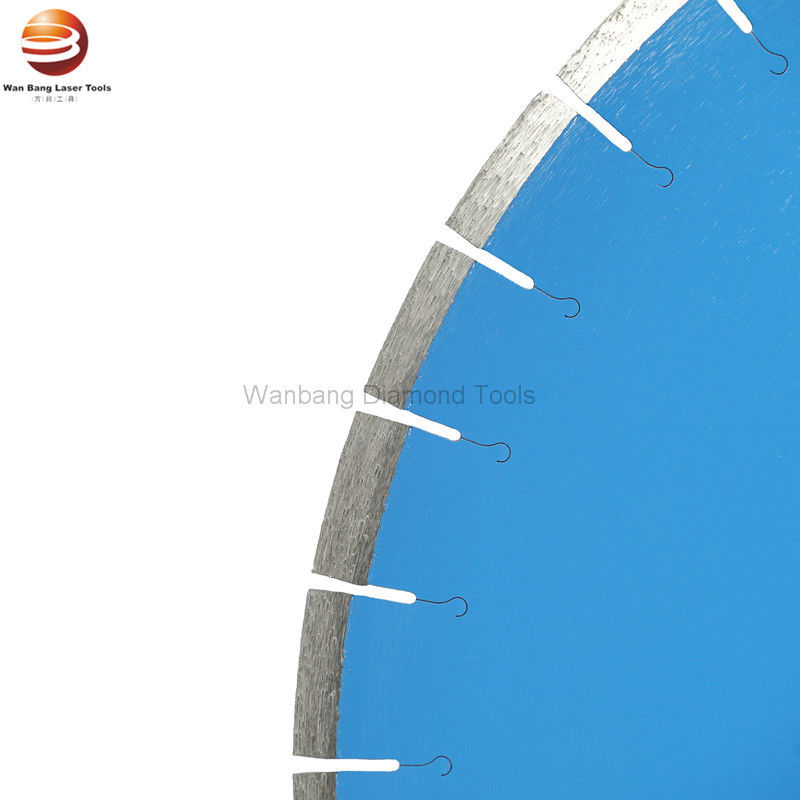

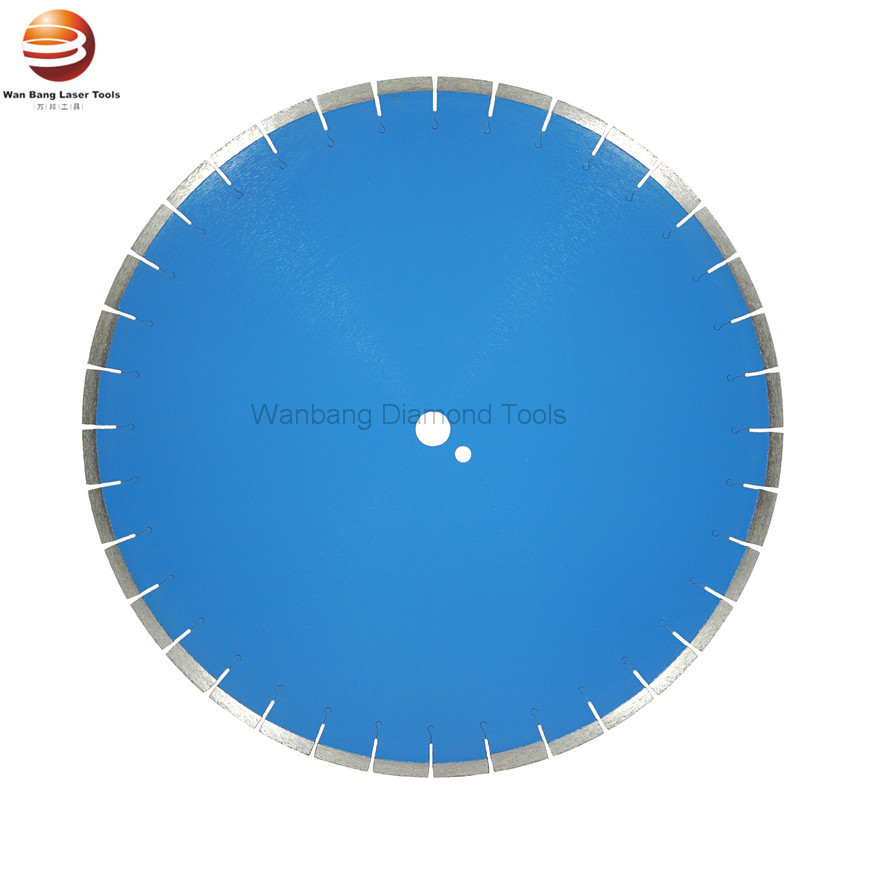

500mm Laser Welded Reinforced Concrete Highway/ Airport runway Cutting Disc
Application: Bridge, concrete and asphalt road, other concrete buildings
* Walk-behind saw blades designed with patented diamond impregnation technology for optimum sharpness and life.
* Wet cutting
* Different quality grade: premium, professional
* Custom arbor sizes and pin holes are available.
* Other special specifications and colors can be produced by clients' require
Specifications:
| Diameter | Seg. LxT(mm) | Seg. height | Cutting Materials | ||
| 16" | 400mm | 40*3.4 | 12mm/13mm | Concrete/reinforced concrete | |
| 18" | 450mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 20" | 500mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 24" | 600mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 26" | 650mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 28" | 700mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 32" | 800mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 36" | 900mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 42" | 1050mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 48" | 1220mm | 40*4.8/5.2 | 12mm/13mm | Concrete/reinforced concrete | |
| 60" | 1500mm | 40*4.8/5.2 | 12mm/13mm | Concrete/reinforced concrete | |
| 64" | 1600mm | 40*4.8/5.2 | 12mm/13mm | Concrete/reinforced concrete | |
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
