Type: | Laser Welded Wet Cut Saw Blade | Color: | Customized |
---|---|---|---|
Application: | Reinforced Concrete Bridge Demolition, Concrete Road/ Highway Cutting | Product Name: | Diamond Floor Saw Blade |
Cutting Material: | Reinforced Concrete, Old Concrete, Cured Concrete, Concrete Slab, Precast Slab, Hard Brick, Masonry | Feature: | Unique Firmula For Durable Life And Fast Cutting Speed, Straight Smooth Edge |
Welding Technology: | Laser Welding | Material: | High Purity Diamond And Prealloyed Powder, Alloy Steel |
Segment Height: | 12mm/13mm | Segment Thickness: | 4.8mm/5.2mm/customized |
Diameter: | 16”18" 20" 24" 26" 28"32" 36" 42" 48" 60" 64" | ||
High Light: | Customized Color Diamond Floor Saw Blades,900mm Diamond Floor Saw Blades,900mm Construction Saw Blades |

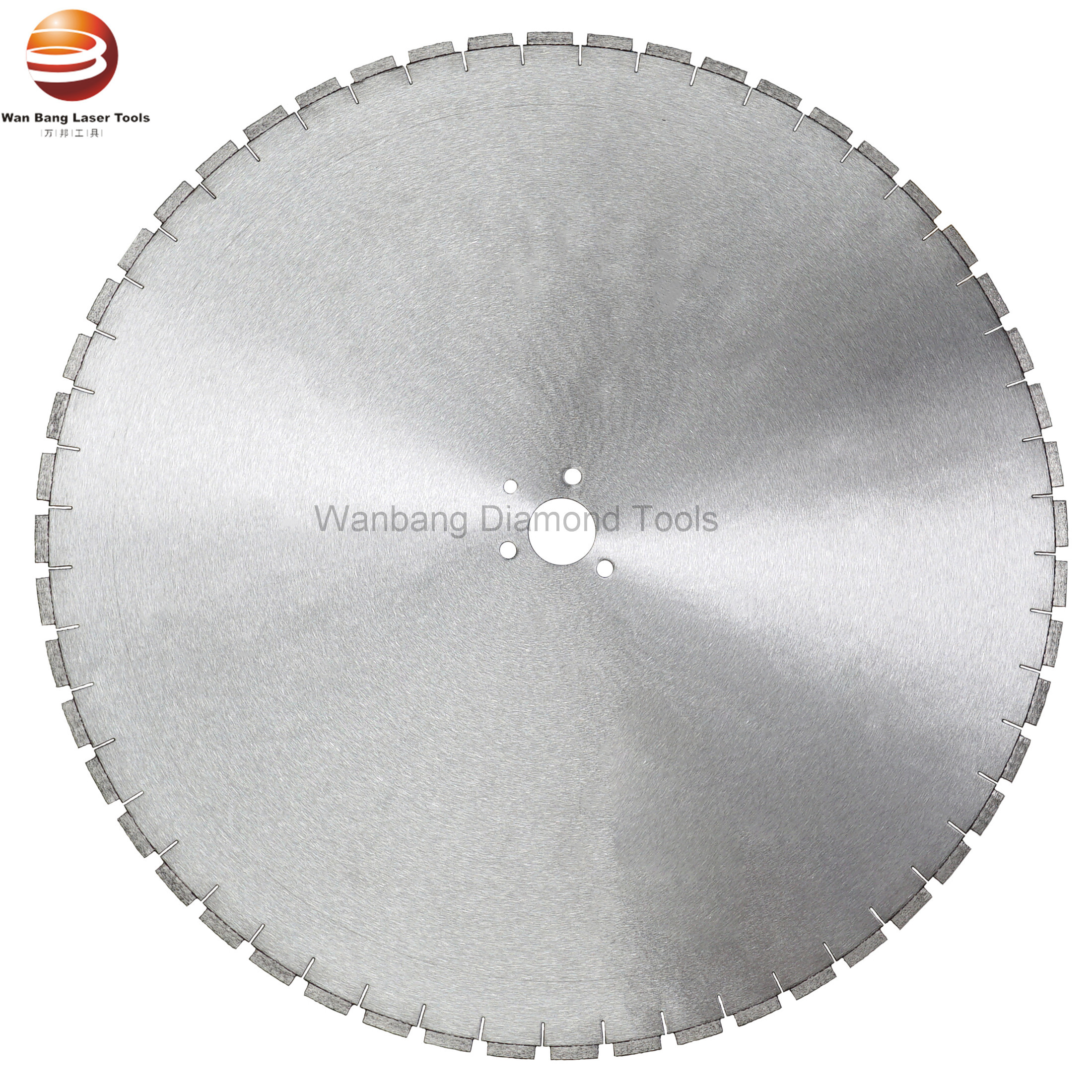

900mm Reinforced concrete road cutting diamond blades for floor saw
Application: Bridge, concrete and asphalt road, other concrete buildings
* Walk-behind saw blades designed with patented diamond impregnation technology for optimum sharpness and life.
* Wet cutting
* Different quality grade: premium, professional
* Custom arbor sizes and pin holes are available.
* Other special specifications and colors can be produced by clients' require
Specifications:
Diameter | Seg. LxT(mm) | Seg. height | Cutting Materials | ||
16" | 400mm | 40*3.4 | 12mm/13mm | Concrete/reinforced concrete | |
18" | 450mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
20" | 500mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
24" | 600mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
26" | 650mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
28" | 700mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
32" | 800mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
36" | 900mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
42" | 1050mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
48" | 1220mm | 40*4.8/5.2 | 12mm/13mm | Concrete/reinforced concrete | |
60" | 1500mm | 40*4.8/5.2 | 12mm/13mm | Concrete/reinforced concrete | |
64" | 1600mm | 40*4.8/5.2 | 12mm/13mm | Concrete/reinforced concrete |
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
