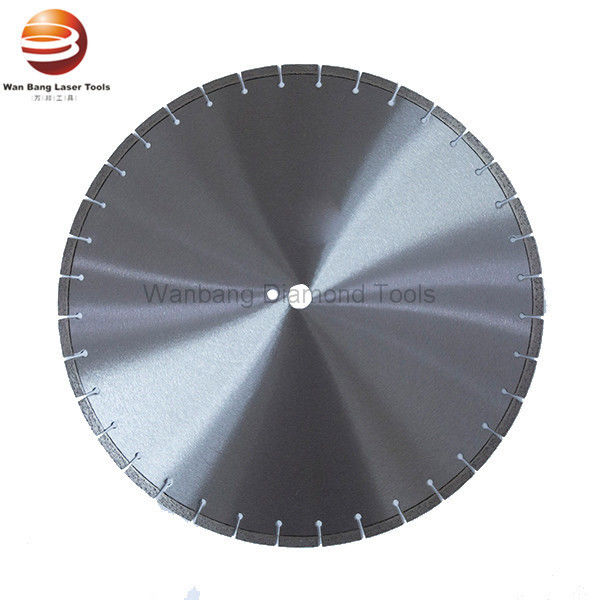

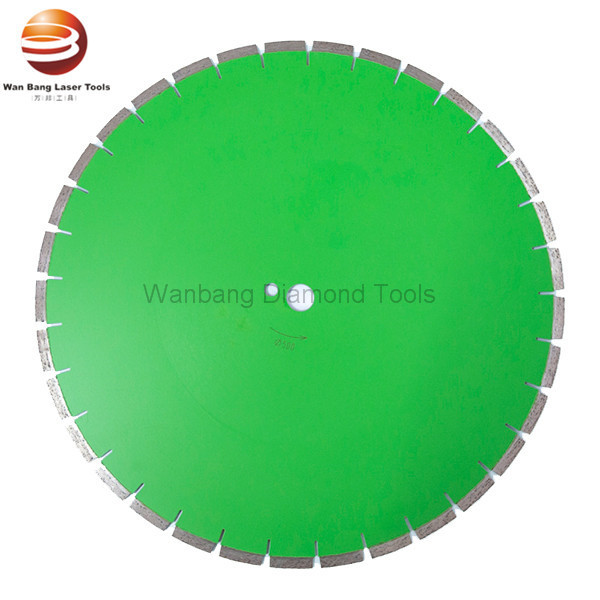

Laser Welded 400mm 500mm Diamond Saw Blade for Refractory Brick

Basic Information
Place of Origin: China
Brand Name: WANBANG
Certification: ISO9001
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton case
Delivery Time: 10-14 days delivery time
Payment Terms: T/T
Finishing: Painting,Other Type: Dry And Wet Cutting Diamond Circular Saw Blade
Color: Customize Application: Refractory Brick, Granite,Concrete
Product Name: Diamond Saw Blade Advantage: Fast Cutting Speed,durable
Usage: Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting Feature: Lower Noise,Durable,Unique Firmula,High Speed.Straight Smooth Edge
Process: Laser Welded Material: High Quality Diamonds
Teeth: 28 Diameter: 16 Inch
High Light:

400mm Diamond Saw Blade

,

ISO 28 Teeth Diamond Saw Blade

,

400mm General Purpose Saw Blades

Laser Welded 400mm 500mm Diamond Saw Blade for Refractory Brick





High quality diamond saw blades can be used for cutting all kinds of non-metal material: concrete, reinforced concrete, asphalt, refractory materials, marble, granite, tile, ceramic sandstone, glass, and other general construction materials. Diamond cutting saw blades with different specifications from 105mm~3000 mm can be supplied according to customers' requirements.​





Application: General construction materials, concrete slab, precast slab, granite, sandstone, stone slab, tile, concrete
* Higher quality diamond for durable life and fast cutting
* Dry or wet cutting
* Applicable for table saw, walk-behind saw, handhelded saw
* Different quality grade: Economic, standard, premium, professional
* 25.4mm arbor with 1 drive pin holes standard. Arbor size 27mm, 50mm are available.
* Other special specifications and colors can be produced by clients' require



Specifications:
Diameter Seg. LxT(mm) Seg. height Seg.No. Cutting Materials
4.5" 115mm 31.5*2.4 10/12mm 9 Concrete/General purpose
5" 125mm 31.5*2.4 10/12mm 10 Concrete/General purpose
6" 150mm 31.5*2.4 10/12mm 12 Concrete/General purpose
7" 180mm 31.5*2.4 10/12mm 14 Concrete/General purpose
9" 230mm 38.5*2.6 10/12mm 16 Concrete/General purpose
12" 300mm 40*3.2 10/12mm 21 Concrete/General purpose
14" 350mm 40*3.2 10/12mm 24 Concrete/General purpose
16" 400mm 40*3.4 10/12mm 28 Concrete/General purpose
18" 450mm 40*3.6 10/12mm 32 Concrete/General purpose
20" 500mm 40*3.6 10/12mm 36 Concrete/General purpose
24" 600mm 40*4.0 10/12mm 42 Concrete/General purpose
26" 650mm 40*4.2 10/12mm 42 Concrete/General purpose
28" 700mm 40*4.6 10/12mm 45 Concrete/General purpose
32" 800mm 40*4.8 10/12mm 52 Concrete/General purpose
36" 900mm 40*4.8 10/12mm 60 Concrete/General purpose





Laser Welded 400mm 500mm Diamond Saw Blade for Refractory Brick 0Laser Welded 400mm 500mm Diamond Saw Blade for Refractory Brick 1



WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.



As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.



Our product including: Laser welded diamond concrete saw blades, asphalt saw blades, granite cutting disc, diamond core drill bits, diamond grinding cup wheels and grinding shoes, diamond wall saw blades, floor saw blades, ring saw, wire saw, tuck point blades.

Laser Welded 400mm 500mm Diamond Saw Blade for Refractory Brick 2
