| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 800mm |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case/wooden case/pallet |
| Delivery Time: | 10-15 days delivery time |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Finishing: | Painting,Other | Type: | Laser Welded Diamond Asphalt Saw Blade, Floor Saw |
|---|---|---|---|
| Color: | Customizable/red/orange/green/blue/black/white | Product Name: | Diamond Saw Blade |
| Advantage: | Heat Resistance,fast Cutting Speed,durable | Usage: | Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting |
| Feature: | Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge | Process: | Laser Welded |
| Material: | Small Size Diamonds,metal Bond Materials And Alloy Steel | Seg. Height: | 12mm/13mm |
| Diameter: | 800mm/32" | Cutting Materials: | Concrete/reinforced Concrete |
| High Light: | Asphalt Diamond Floor Saw Blade,800mm Painting Diamond Floor Saw Blade,Concrete Cutting Wheel With Teeth |
||

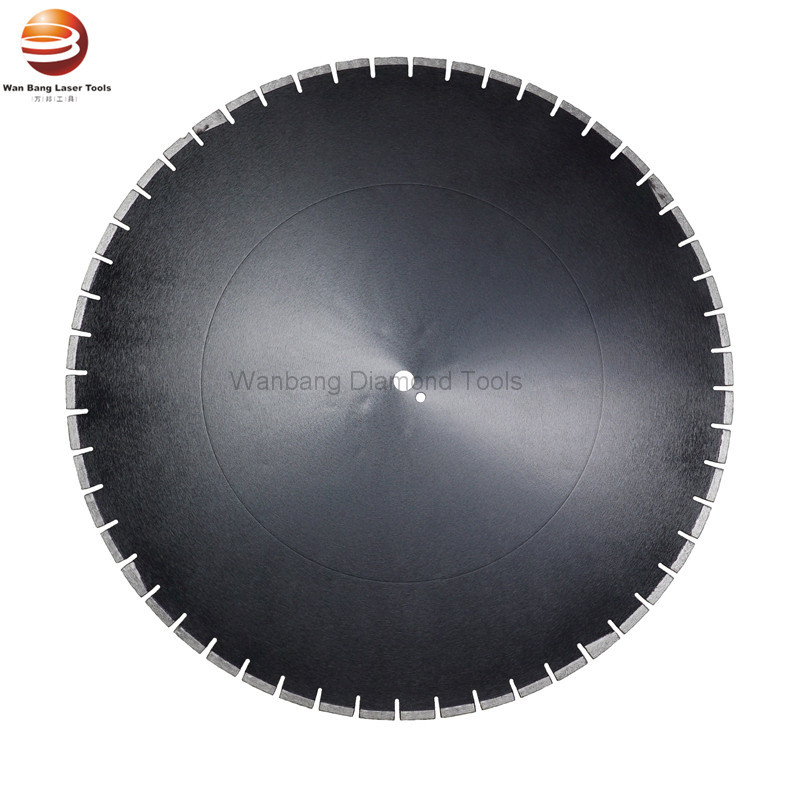

800mm Laser Welded Diamond Floor Saw Blade With Protective Teeth for Asphalt
Application: Bridge, concrete and asphalt road, other concrete buildings
* Walk-behind saw blades designed with patented diamond impregnation technology for optimum sharpness and life.
* Wet cutting
* Different quality grade: premium, professional
* Custom arbor sizes and pin holes are available.
* Other special specifications and colors can be produced by clients' require
Specifications:
| Diameter | Seg. LxT(mm) | Seg. height | Cutting Materials | ||
| 16" | 400mm | 40*3.4 | 12mm/13mm | Concrete/reinforced concrete | |
| 18" | 450mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 20" | 500mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 24" | 600mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 26" | 650mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 28" | 700mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 32" | 800mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 36" | 900mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 42" | 1050mm | 40*4.8 | 12mm/13mm | Concrete/reinforced concrete | |
| 48" | 1220mm | 40*4.8/5.2 | 12mm/13mm | Concrete/reinforced concrete | |
| 60" | 1500mm | 40*4.8/5.2 | 12mm/13mm | Concrete/reinforced concrete | |
| 64" | 1600mm | 40*4.8/5.2 | 12mm/13mm | Concrete/reinforced concrete | |
Certificates
Company Information
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
