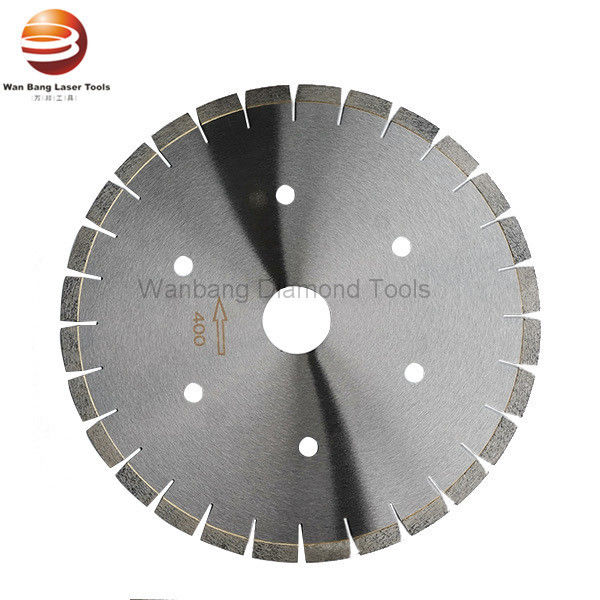

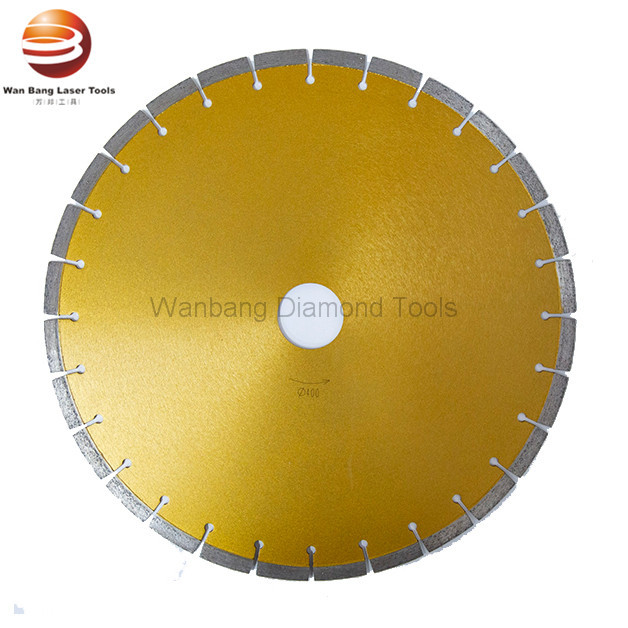

High Frequency Brazed Diamond Saw Blades For Cutting Granite Marble

Basic Information
Place of Origin: China
Brand Name: WANBANG
Certification: ISO9001
Model Number: 500-600mm
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton case
Delivery Time: 10-14 days delivery time
Payment Terms: T/T
Finishing: Painting,Other Type: Laser Welded Diamond Asphalt Saw Blade
Color: Customize Application: Granite,Concrete,stone,marble
Product Name: Diamond Saw Blade Advantage: Heat Resistance,Fast Cutting Speed,durable
Usage: Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting Feature: Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge
Process: Laser Welded Material: Small Size Diamonds,metal Bond Materials And Alloy Steel
Teeth: 21 24 28 36 39 42 Diameter: 12”14" 16" 20" 22" 24"
High Light:

Silver Brazed Diamond Saw Blades

,

Diamond Saw Blades For Cutting Marble

,

Silver Brazed Diamond Saw Blades For Cutting

High Frequency Welding 300mm 500mm 600mm Granite Stone Cutting Blades



Application: Granite, marble
* Higher quality diamond and long life
* Dry or wet cutting
* Different quality grade: Economic, standard, premium, professional
* 2" arbor with drive pin holes standard. Custom arbor sizes are available.



Specifications:





Diameter Seg. LxT(mm) Seg. height Seg.No. Cutting Materials
12" 300mm 39*3.2 13mm 21 Granite
14" 350mm 40*3.3 12/15mm 24 Granite
16" 400mm 40*3.8 12/15mm 28 Granite
20" 500mm 40*4.4 12/15mm 36 Granite
22" 550mm 40*4.4 12/15mm 39 Granite
24" 600mm 40*4.9 12/15mm 42 Granite





Company Information:



WUHAN WAN BANG LASER DIAMOND TOOLS CO.,LTD, a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999.
As a leading manufacture in professional diamond tools,Wan bang specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our product including: Laser welded diamond concrete saw blades, asphalt saw blades, granite cutting disc, diamond core drill bits, diamond grinding cup wheels and grinding shoes, diamond wall saw blades, floor saw blades, ring saw, wire saw, tuck point blades.
