Finishing: | Painting,Other | Type: | Dry And Wet Cutting Diamond Circular Saw Blade |
---|---|---|---|
Color: | Customize | Application: | Granite,Concrete,stone,marble |
Product Name: | Diamond Saw Blade | Advantage: | Heat Resistance,Fast Cutting Speed,durable |
Usage: | Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting | Feature: | Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge |
Process: | Laser Welded | Material: | High Quality Diamonds |
Teeth: | 16 20 24 27 | Diameter: | 9" 12" 14" 16" |
High Light: | WANBANG Diamond Saw Blades,Diamond Saw Blades With Curved Line,WANBANG Saw Blades |

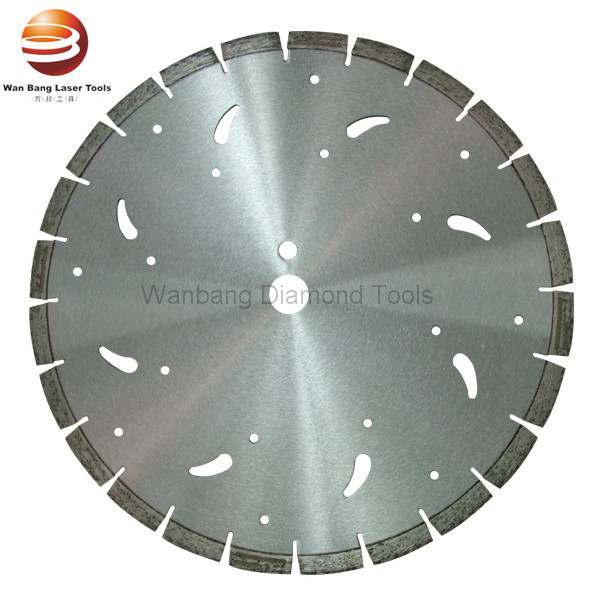

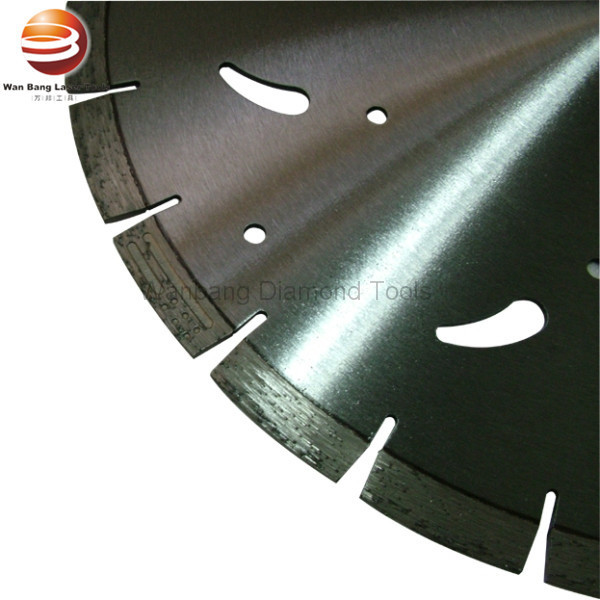

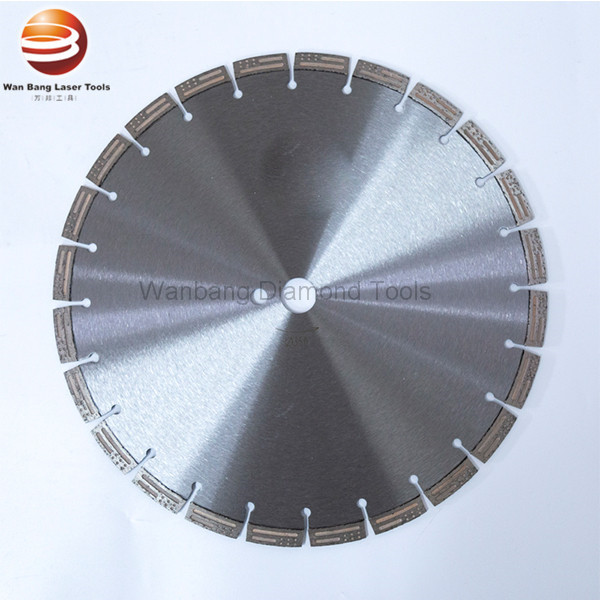

WANBANG Laser Diamond Saw Blades for Old Concrete Cutting with 12mm Segments
Application: General construction materials, concrete slab, precast slab, granite, sandstone, stone slab, tile, concrete
* Special designed cooling holes can help to decrease noise while cutting
* Higher quality diamond for long life and smoothly cutting. The cutting performance can be excellent evenwith common outlook
* Dry or wet cutting
* Applicable for table saw, walk-behind saw, handhelded saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with drive pin holes standard. Custom arbor sizes are available.
* Other special specifications and colors can be produced by clients' require
Diameter | Seg. LxT(mm) | Seg. height | Seg.No. | Cutting Materials | |
9" | 230mm | 38*2.6 | 12mm | 16 | Concrete/General purpose |
12" | 300mm | 40*3.2 | 12mm | 20 | Concrete/General purpose |
14" | 350mm | 40*3.2 | 12mm | 24 | Concrete/General purpose |
16" | 400mm | 40*3.2 | 12mm | 27 | Concrete/General purpose |
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our product including: Laser welded diamond concrete saw blades, asphalt saw blades, granite cutting disc, diamond core drill bits, diamond grinding cup wheels and grinding shoes, diamond wall saw blades, floor saw blades, ring saw, wire saw, tuck point blades.
