| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case |
| Delivery Time: | 10-14 days delivery time |
| Payment Terms: | T/T |
| Finishing: | Painting,Other | Type: | Dry And Wet Cutting Diamond Circular Saw Blade |
|---|---|---|---|
| Color: | Customize | Application: | Granite,Concrete,stone,marble |
| Product Name: | Diamond Saw Blade | Advantage: | Heat Resistance,Fast Cutting Speed,durable |
| Usage: | Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting | Feature: | Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge |
| Process: | Laser Welded | Material: | Small Size Diamonds,metal Bond Materials And Alloy Steel |
| Teeth: | 16 20 24 27 | Diameter: | 9" 12" 14" 16" |
| High Light: | 230mm General Purpose Saw Blades,400mm General Purpose Saw Blades,3U Turbo General Purpose Saw Blades |
||

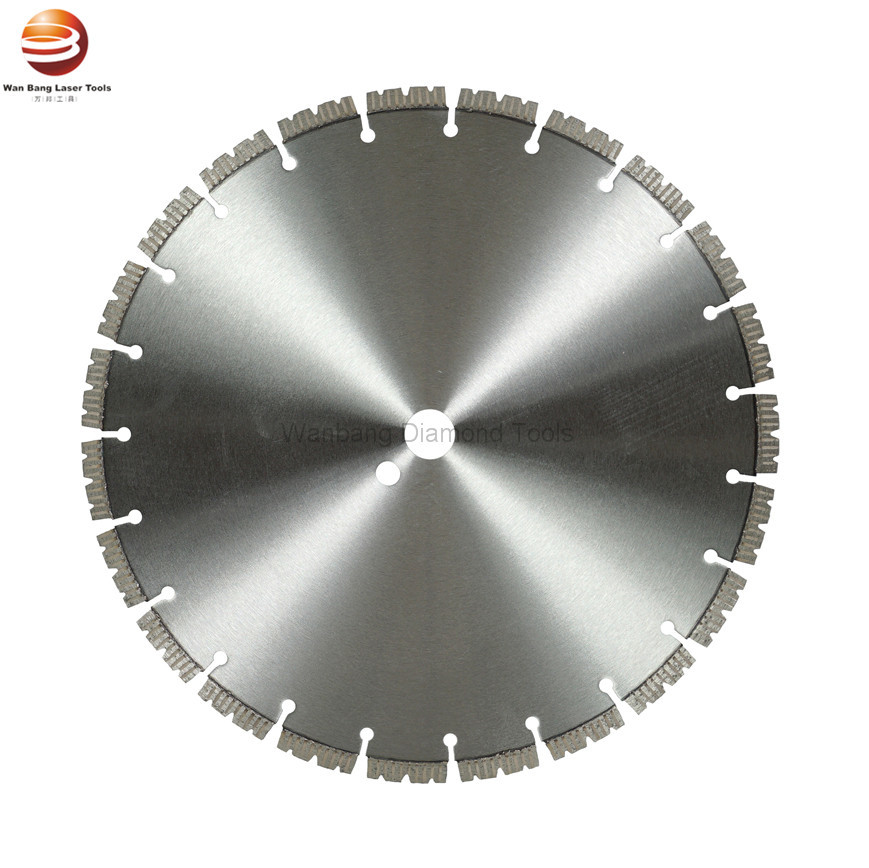

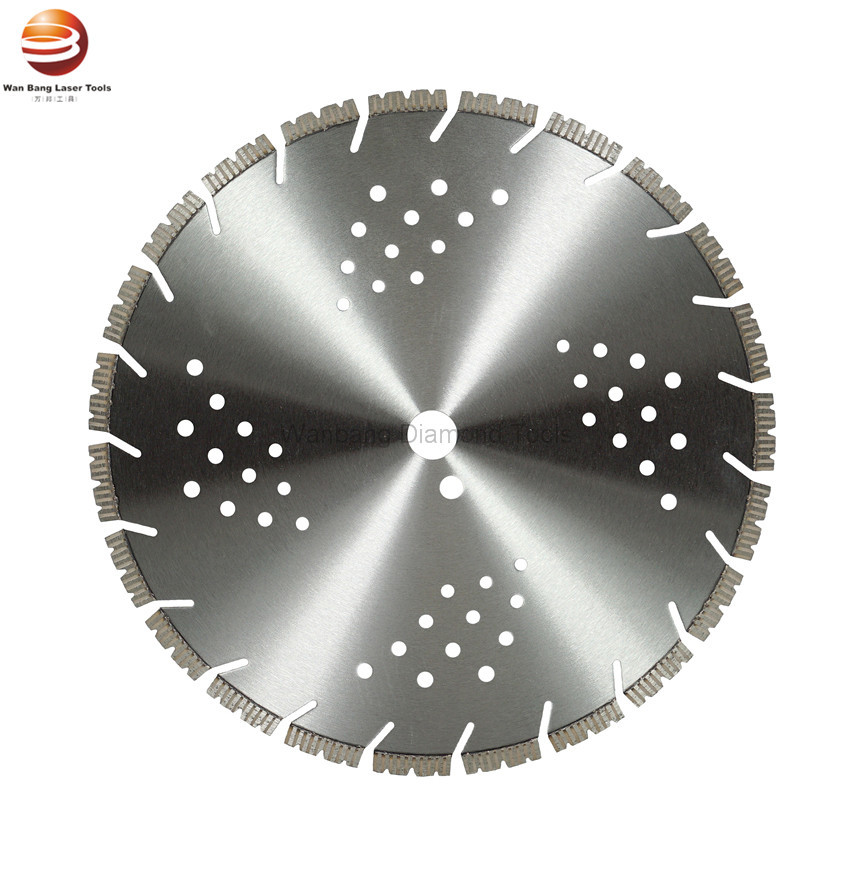

Laser Welded Diamond Saw Blade With 3U Turbo Shape Segments
Application: General construction materials, concrete slab, precast slab, granite, sandstone, stone slab, tile, concrete
* Special designed cooling holes can help to decrease noise while cutting
* Higher quality diamond and bond for long life and smoothly cutting with stable cutting speed
* Dry or wet cutting
* Applicable for table saw, walk-behind saw, handhelded saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with drive pin holes standard. Custom arbor sizes are available.
* Other special specifications and colors can be produced by clients' require
| Diameter | Seg. LxT(mm) | Seg. height | Seg.No. | Cutting Materials | |
| 9" | 230mm | 38*2.6 | 12mm | 16 | Concrete/General purpose |
| 12" | 300mm | 40*3.2 | 12mm | 20 | Concrete/General purpose |
| 14" | 350mm | 40*3.2 | 12mm | 24 | Concrete/General purpose |
| 16" | 400mm | 40*3.2 | 12mm | 27 | Concrete/General purpose |
Company Information:
WUHAN WAN BANG LASER DIAMOND TOOLS CO.,LTD, a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999.
As a leading manufacture in professional diamond tools,Wan bang specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our product including: Laser welded diamond concrete saw blades, asphalt saw cutting blade, granite cutting disc, diamond core drill bits for reinforced concrete, diamond grinding cup wheel and diamond grinding shoes, diamond wall saw blade, floor saw blade, ring saw for handheld machine, wire saw for demolition, tuck point blade for grooving.
