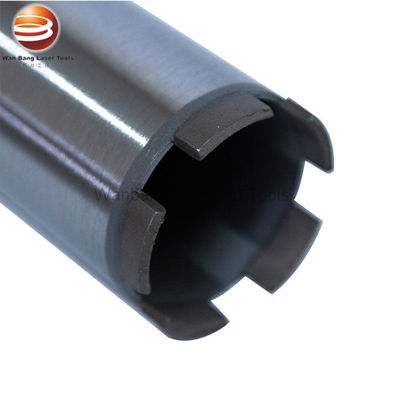

Roof Top Turbo Segments Laser Welded Wet Diamond Core Drill Bits

Basic Information
Place of Origin: China
Brand Name: WANBANG
Certification: ISO9001
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton case
Delivery Time: 10-14 days delivery time
Payment Terms: T/T
Contact Now
Color: Customize Use: Masonry Drilling,for Concrete
Type: Core Drill Bit Material: Diamond Core Drill Bits
Product Name: Diamond Core Drill Bit Application: Drilling Holes,ceramic And Reinforced Concrete,marble Granite Title,For Concrete Granite Stone
Advantage: Good Sharpness,Imporved Efficiency,Long Life,Quality And Price Quality: Top Grade
High Light:

Roof Top Segments Diamond Drill Bits

,

Laser Welded Diamond Core Drill Bits

,

Laser Welded Wet Diamond Drill Bits

Roof Top Segments Laser Welded Wet Diamond Core Drill Bits



Application:
Engineering construction, wall, concrete
* Thinner diamond segment and thinner tube wall can easily reduce the resistance and increase the drilling speed
* Provide 20% higher drilling performance in the widest range of heavily reinforced concrete, particularly in difficult operating conditions.
* Drilling stable with small wobbling.
* 16" and 18" drilling depth standard
* Superior cutting speed and long life in a variety of applications.
* Laser welded up to 20".
* Sharp "roof top" segments and "flat top" segments standard on 2" to 20" diameter.



Roof Top Turbo Segments Laser Welded Wet Diamond Core Drill Bits 0Roof Top Turbo Segments Laser Welded Wet Diamond Core Drill Bits 1



Specifications:



Core Drills for Wet Use
Diameter+B349:G375 Segments size Thread Drilling Depth Quality Grade Cutting materials
42mm 22*3.5*10 1- 1/4" UNC
1/2" BSP
M14
M16
450mm Pro. Reinforced concrete
52mm 24*3.5*10 450mm Pro. Reinforced concrete
62mm 24*3.5*10 450mm Pro. Reinforced concrete
72mm 24*3.5*10 450mm Pro. Reinforced concrete
82mm 24*3.5*10 450mm Pro. Reinforced concrete
92mm 24*3.5*10 450mm Pro. Reinforced concrete
102mm 24*3.5*10 450mm Pro. Reinforced concrete
112mm 24*3.5*10 450mm Pro. Reinforced concrete
122mm 24*3.5*10 450mm Pro. Reinforced concrete
127mm 24*3.5*10 450mm Pro. Reinforced concrete
132mm 24*3.5*10 450mm Pro. Reinforced concrete
142mm 24*4.0*10 450mm Pro. Reinforced concrete
152mm 24*4.0*10 450mm Pro. Reinforced concrete
162mm 24*4.0*10 450mm Pro. Reinforced concrete
172mm 24*4.0*10 450mm Pro. Reinforced concrete
182mm 24*4.0*10 450mm Pro. Reinforced concrete
200mm 24*4.0*10 450mm Pro. Reinforced concrete
225mm 24*4.5*10 450mm Pro. Reinforced concrete
250mm 24*4.5*10 450mm Pro. Reinforced concrete
300mm 24*5.2*10 450mm Pro. Reinforced concrete
350mm 24*5.2*10 450mm Pro. Reinforced concrete
400mm 24*5.2*10 450mm Pro. Reinforced concrete
450mm 24*5.2*10 450mm Pro. Reinforced concrete
500mm 24*5.2*10 450mm Pro. Reinforced concrete
550mm 24*5.2*10 450mm Pro. Reinforced concrete
600mm 24*5.2*10 450mm Pro. Reinforced concrete



WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.



As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.



Roof Top Turbo Segments Laser Welded Wet Diamond Core Drill Bits 2
