| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 4-7 inch |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case |
| Delivery Time: | 10-14 days delivery time |
| Payment Terms: | T/T |
| Abrasive: | Diamond | Shape: | Cup-Shaped |
|---|---|---|---|
| Bonding Agent: | Metal | Hardness: | Hard,Standard |
| Product Name: | Diamond Grinding Cup Wheel | Application: | Concrete And Stone Floor |
| Color: | Customize,Red/Nature/Blue/Yellow | Type: | Single/Double Row/ Segmented Turbo |
| Usage: | Masonty,hard Concrete And Bricks,Ceramic Tile,Asphalt / Bricks / Reinforced Concrete Structure | Material: | Diamond + Metal |
| Advantage: | Fast Cutting Speed,Operator Safety | ||
| High Light: | 7inch Single Row Diamond Cup Wheel,4inch Single Row Diamond Cup Wheel,OEM Single Row Diamond Cup Wheel |
||

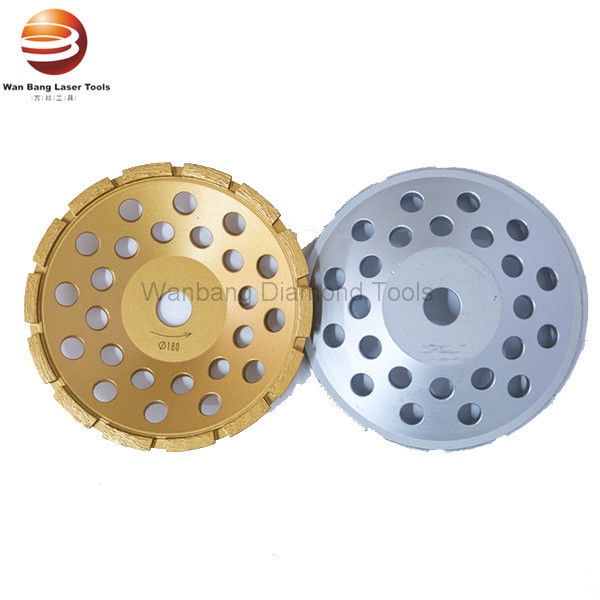

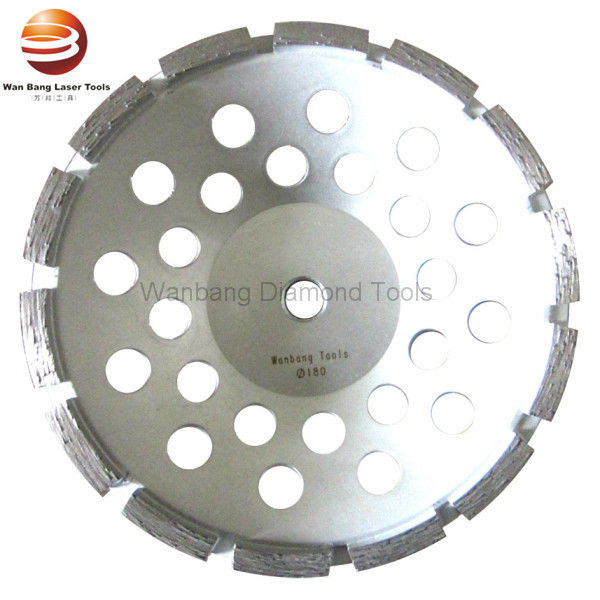

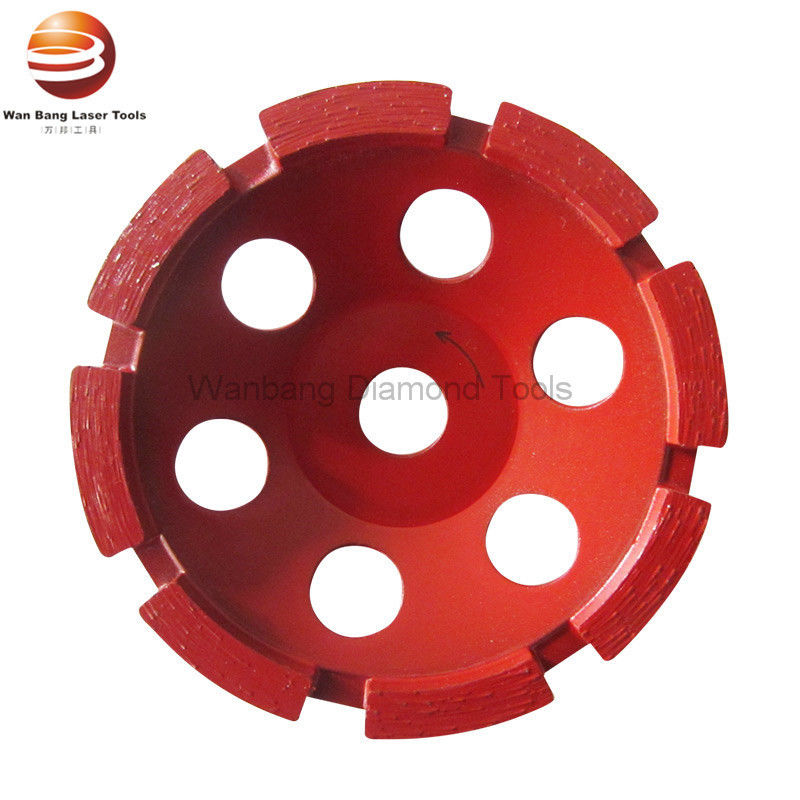

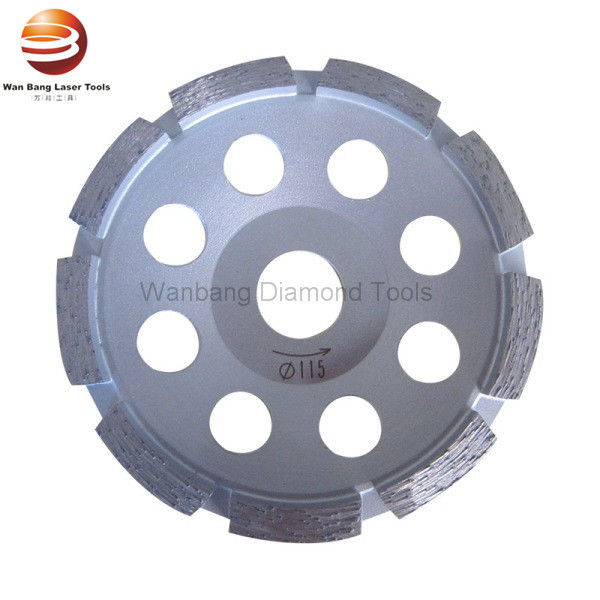

4-7 Inch Single Row Diamond Grinding Cup Wheels
Diamond floor grinding cup wheels- Single Row
Applications: Rapid removal of concrete, granite, asphalt, marble and other construction materials
* Good for general grinding and heavier stock removal
* Large grinding segments with heat treated steel bodies which provides increased durability and wheel life.
* Soft, medium, hard Bond
* Fine, Medium, and Course grit available
Specifications:
| Diameter | Seg.size | Seg.No. | Grade | Arbor | |
| 4" | 105mm | 28*7.5*5 | 8 | Standard | 7/8"-5/8"-M14 |
| 4" | 105mm | 28*7.5*5 | 8 | Pro. | 7/8"-5/8"-M14 |
| 5" | 125mm | 30*8*5 | 10 | Standard | 7/8"-5/8"-M14 |
| 5" | 125mm | 30*8*5 | 10 | Pro. | 7/8"-5/8"-M14 |
| 7" | 180mm | 30*8*5 | 14 | Standard | 7/8"-5/8"-M14 |
| 7" | 180mm | 30*8*5 | 14 | Pro. | 7/8"-5/8"-M14 |
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
