Color: | Customize | Use: | Masonry Drilling,for Concrete |
---|---|---|---|
Type: | Core Drill Bit | Material: | Diamond Core Drill Bits |
Product Name: | Diamond Core Drill Bit | Application: | Drilling Holes,ceramic And Reinforced Concrete,marble Granite Title,For Concrete Granite Stone |
Advantage: | Good Sharpness,Imporved Efficiency,Long Life,Quality And Price | Quality: | Top Grade |
High Light: | Turbo Segmented Diamond Core Drill Bits,Fast Cutting Turbo Segmented Drill Bits,WANBANG Drill Bits |

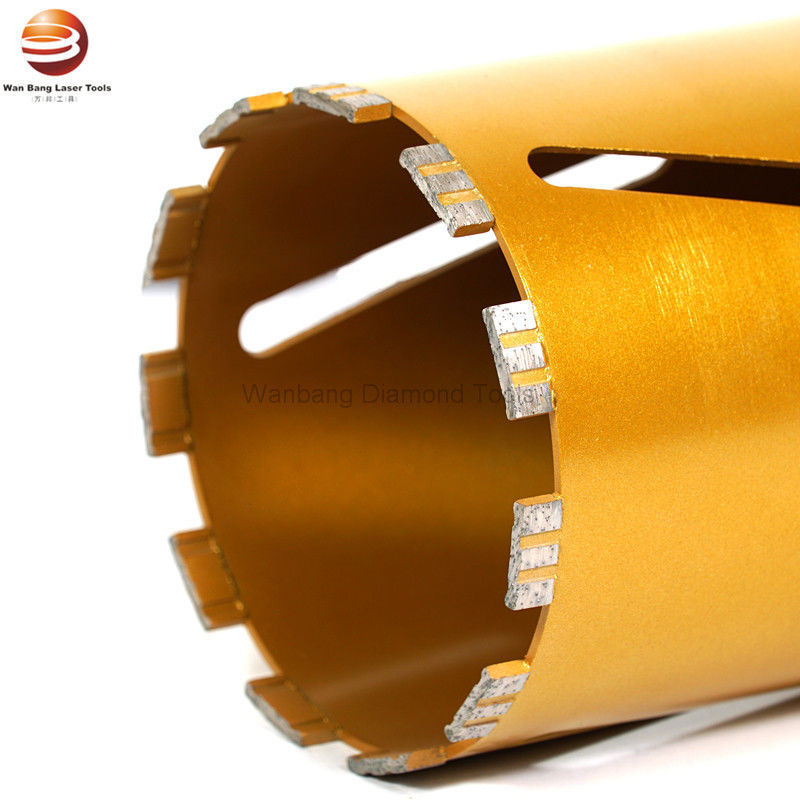

Turbo Segments Laser Welded Dry Diamond Core Drill Bits For Rebar Concrete
Application:
Engineering construction, wall, concrete
* Industry leading technology that provides consistently high performance in the widest range of heavily reinforced concrete.
* Superior cutting speed and long life in a variety of applications.
* Drilling stable with small wobbling.
* Laser welded up to 7".
* Sharp "roof top" segments and "flat top" segments standard on 2" to 7" diameter.
Specifications:
Core Drills for Dry Use | |||||
Diameter+B386:G408 | Thread | Segments size | Quality Grade | Cutting materials | |
5/8" | 16mm | M14 M16 5/8"-11 |
ring*10 | Standard/ Pro. | Reinforced concrete |
3/4" | 19mm | ring*10 | Standard/ Pro. | Reinforced concrete | |
7/8" | 22mm | ring*10 | Standard/ Pro. | Reinforced concrete | |
1" | 25mm | ring*10 | Standard/ Pro. | Reinforced concrete | |
1-1/8" | 28mm | ring*10 | Standard/ Pro. | Reinforced concrete | |
1-1/4" | 32mm | ring*10 | Standard/ Pro. | Reinforced concrete | |
1-3/8" | 35mm | ring*10 | Standard/ Pro. | Reinforced concrete | |
1-1/2" | 38mm | ring*10 | Standard/ Pro. | Reinforced concrete | |
1-5/8" | 42mm | 24*3.5*10 | Standard/ Pro. | Reinforced concrete | |
1-3/4" | 45mm | 24*3.5*10 | Standard/ Pro. | Reinforced concrete | |
1-7/8" | 48mm | 24*3.5*10 | Standard/ Pro. | Reinforced concrete | |
2" | 50mm | 24*3.5*10 | Standard/ Pro. | Reinforced concrete | |
2-1/2" | 64mm | 24*3.5*10 | Standard/ Pro. | Reinforced concrete | |
3" | 76mm | 24*3.5*10 | Standard/ Pro. | Reinforced concrete | |
3-1/2" | 89mm | 24*3.5*10 | Standard/ Pro. | Reinforced concrete | |
4" | 100mm | 24*3.5*10 | Standard/ Pro. | Reinforced concrete | |
4-1/2" | 114mm | 24*3.5*10 | Standard/ Pro. | Reinforced concrete | |
5" | 127mm | 24*3.5*10 | Standard/ Pro. | Reinforced concrete | |
5-1/2" | 140mm | 24*4.0*10 | Standard/ Pro. | Reinforced concrete | |
6" | 152mm | 24*4.0*10 | Standard/ Pro. | Reinforced concrete | |
6-1/2" | 165mm | 24*4.0*10 | Standard/ Pro. | Reinforced concrete | |
7" | 178mm | 24*4.0*10 | Standard/ Pro. | Reinforced concrete |
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
