| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 600mm |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case |
| Delivery Time: | 10-14 days delivery time |
| Payment Terms: | T/T |
| Size: | 600mm | Blade Material: | Diamond |
|---|---|---|---|
| Type: | SAW BLADE | Application: | Granite,Concrete,marble,masonry Material |
| Product Name: | Diamond Saw Blade | Advantage: | Fast Cutting,and Long Life |
| Usage: | Dry Or Wet | Segment Height: | 10/12mm |
| Teeth No.: | 42 | ||
| High Light: | Reinforced Concrete Diamond Circular Blade,Diamond Circular Blade 600mm,600mm concrete circular saw |
||

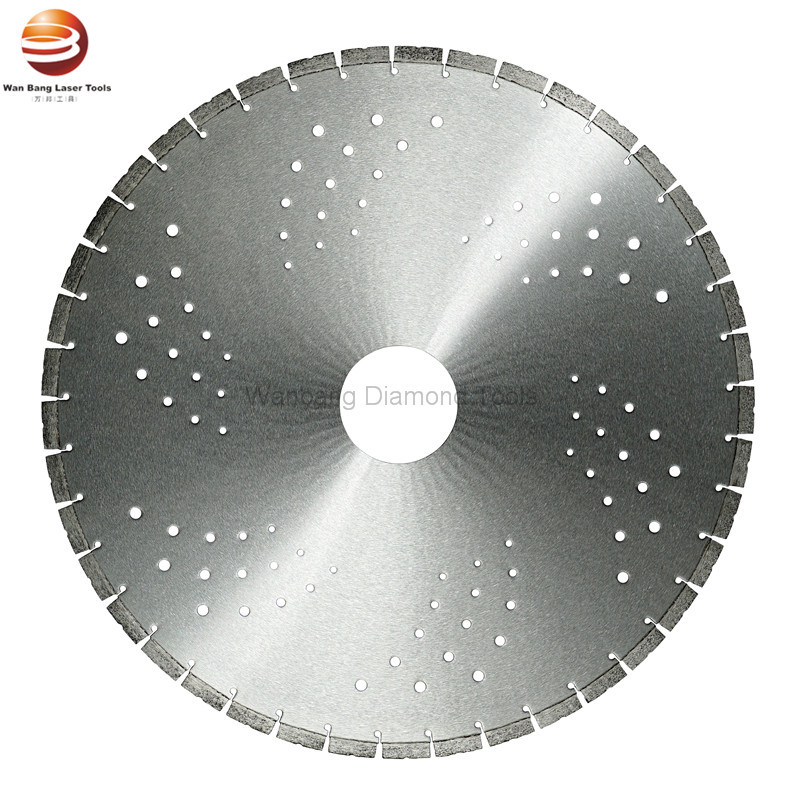

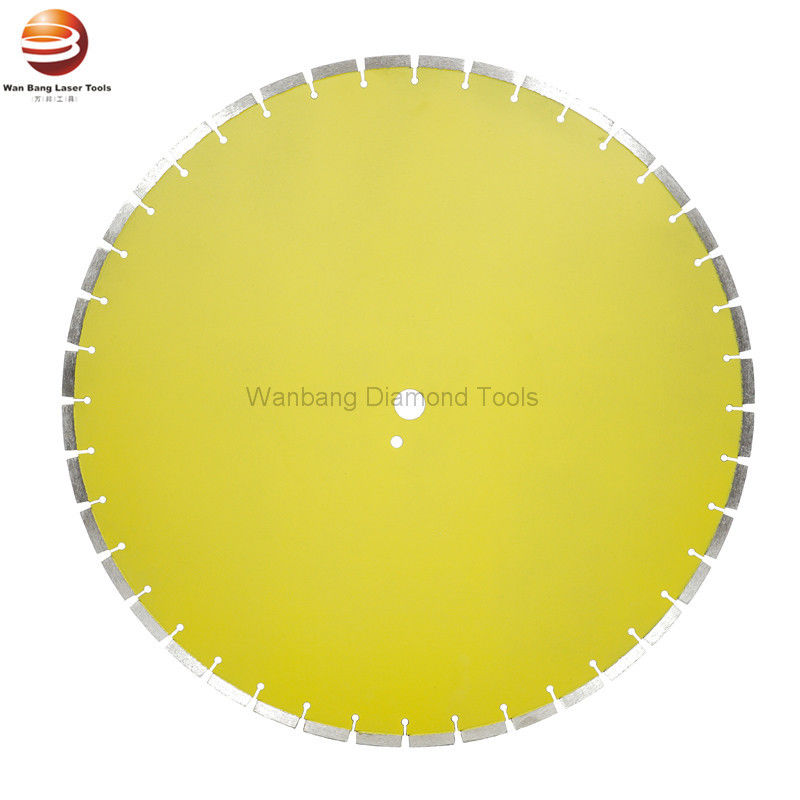

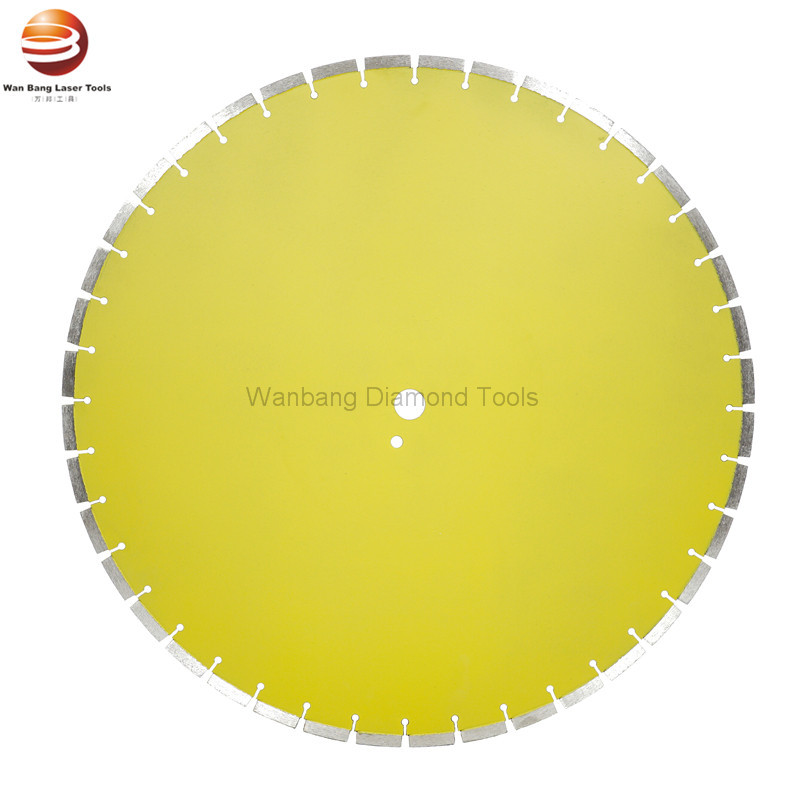

600mm Laser Welding Diamond Circular Blade for Reinforced Concrete Cutting
Application: General construction materials, concrete slab, precast slab, granite, sandstone, stone slab, tile, concrete
* Higher quality diamond and long life/ fast cutting
* Dry cutting
* Applicable for table saw, walk-behind saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with drive pin holes standard. Arbor sizes can be customized.
* Other special specifications and colors can be produced by clients' require
Specifications:
| Diameter | Seg. LxT(mm) | Seg. height | Seg.No. | Cutting Materials | |
| 4.5" | 115mm | 31.5*2.4 | 10/12mm | 9 | Concrete/General purpose |
| 5" | 125mm | 31.5*2.4 | 10/12mm | 10 | Concrete/General purpose |
| 6" | 150mm | 31.5*2.4 | 10/12mm | 12 | Concrete/General purpose |
| 7" | 180mm | 31.5*2.4 | 10/12mm | 14 | Concrete/General purpose |
| 9" | 230mm | 38.5*2.6 | 10/12mm | 16 | Concrete/General purpose |
| 12" | 300mm | 40*3.2 | 10/12mm | 21 | Concrete/General purpose |
| 14" | 350mm | 40*3.2 | 10/12mm | 24 | Concrete/General purpose |
| 16" | 400mm | 40*3.4 | 10/12mm | 28 | Concrete/General purpose |
| 18" | 450mm | 40*3.6 | 10/12mm | 32 | Concrete/General purpose |
| 20" | 500mm | 40*3.6 | 10/12mm | 36 | Concrete/General purpose |
| 24" | 600mm | 40*4.0 | 10/12mm | 42 | Concrete/General purpose |
Our products including:
Laser welded diamond saw blades for general purpose, concrete, wall, asphalt, brick, Laser welded diamond core bit for wall, reinforced concrete and engineering construction.
Diamond saw blades for granite, marble, sandstone, concrete, Diamond hot-pressed (sintered) blades, Diamond electroplated blades, Ring saw, Wire saw, Tuck point blades, Diamond cup wheel and all size of segments for circular saw, core bits, gangsaw , wire saw and so on...
