| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case |
| Delivery Time: | 10-14 days delivery time |
| Payment Terms: | T/T |
| Color: | Customize | Use: | Masonry Drilling,for Concrete |
|---|---|---|---|
| Type: | SAW BLADE | Blade Material: | Diamond |
| Finishing: | Painting | Product Name: | Diamond Saw Cutting Blade |
| Application: | Concrete,granite | Advantage: | High Quality,competitive Price,long Life And High Quality,Safe |
| Feature: | Long Working,High Efficiency,various Designs,Spacious Cutting,Fast Cutting | Technology: | Vacuum Brazed |
| High Light: | Vacuum Brazed Diamond Cutting Blade,Diamond Cutting Blade 230mm,Cast Iron Vacuum Brazed Diamond Tools |
||

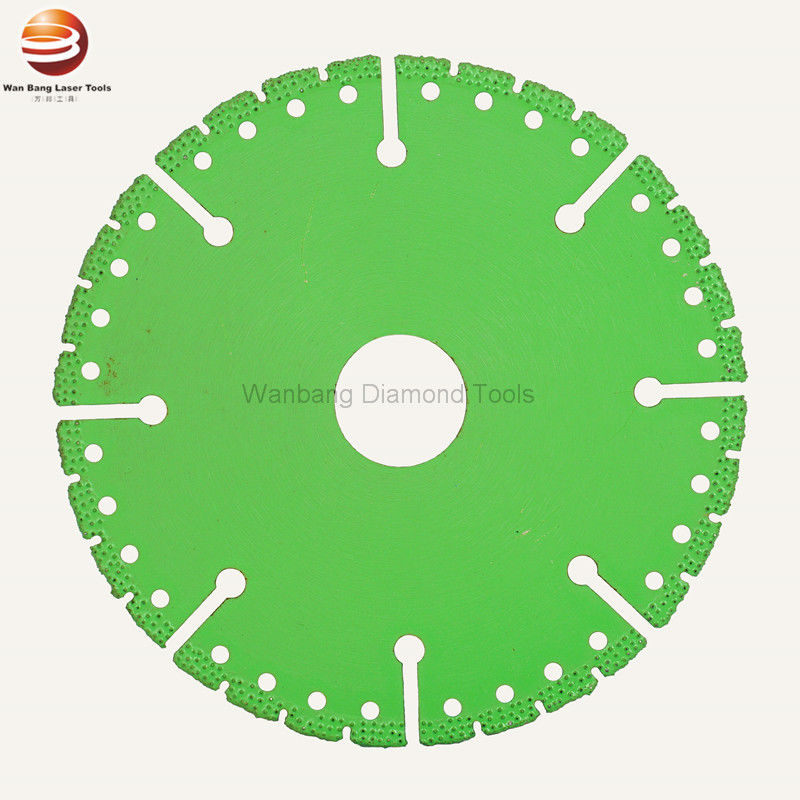

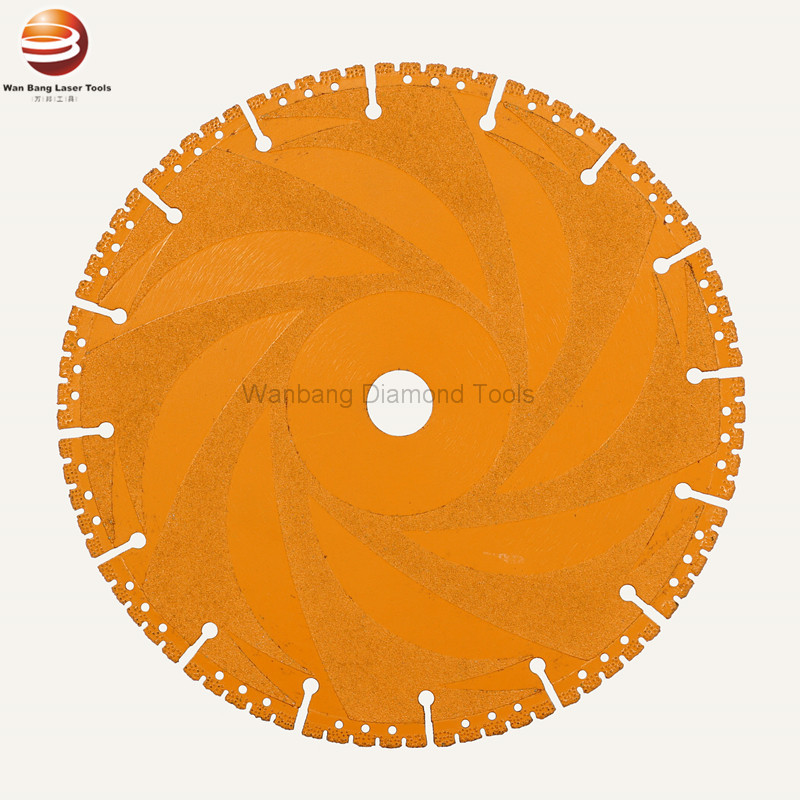

Vacuum Brazed Diamond Cutting Blade for Cast Iron and Rescue
Application: Cast iron, steel, granite, marble, ceramics, glass
* Environmental and long life
* High cutting efficiency
* 1" and 7/8" arbor with drive pin holes standard. Custom arbor sizes are available.
* Electroplated and un-electroplated are available
* Other special specifications and colors can be produced by clients' require
Specifications:
| Diameter | DxT(mm) | Seg. height | Grit | Cutting Materials | |
| 4.5" | 115*2.0 | 5/7/10mm | Customized | Cast iron | |
| 5" | 125*2.0 | 5/7/10mm | Customized | Cast iron | |
| 6" | 150*2.2 | 5/7/10mm | Customized | Cast iron | |
| 7" | 180*2.2 | 5/7/10mm | Customized | Cast iron | |
| 9" | 230*2.6 | 5/7/10mm | Customized | Cast iron | |
| 12" | 300*3.0 | 7/10mm | Customized | Cast iron | |
| 14" | 350*3.0 | 7/10mm | Customized | Cast iron | |
| 16" | 400*3.2 | 7/10mm | Customized | Cast iron | |
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
