300mm 350mm Laser Welded Concrete Cutting Blades With Short Segments

Basic Information
Place of Origin: China
Brand Name: WANBANG
Certification: ISO9001
Model Number: 115mm-350mm
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton case
Delivery Time: 10-14 days delivery time
Payment Terms: T/T
Size: 115mm-350mm Blade Material: Diamond
Type: SAW BLADE Product Name: Diamond Saw Blade
Advantage: Fast Cutting,and Long Cutting Life Usage: Dry Or Wet
Segment Height: 10mm, 12mm, 15mm Segment Thickness: 2.4-3.2
Teeth No.: 12-40
High Light:

Short Segments Concrete Cutting Blades


115mm Concrete Cutting Blades


125mm concrete diamond blade

Laser Welding Diamond Blade for Concrete Dry Cutting with Short Segments
Application: General construction materials, concrete slab, precast slab, granite, sandstone, stone slab, tile, concrete
* Higher quality diamond for fast cutting and long life
* Dry or wet cutting
* Applicable for table saw, walk-behind saw, handhelded saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with drive pin holes standard. Custom arbor sizes are available.
* Other special specifications and colors can be produced by clients' require

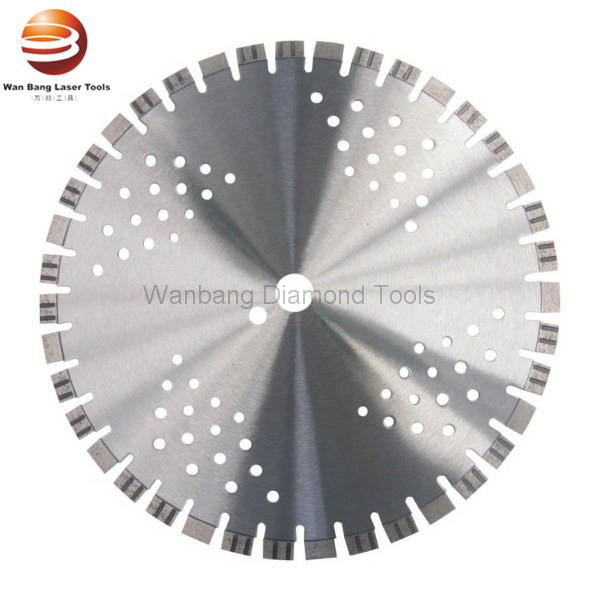

300mm 350mm Laser Welded Concrete Cutting Blades With Short Segments 0

DiameterSeg. LxT(mm)Seg. heightSeg.No.Cutting Materials
4.5"115mm20*2.410mm12Concrete/reinforced concrete
5"125mm20*2.410mm13Concrete/reinforced concrete
6"150mm20*2.610mm16Concrete/reinforced concrete
7"180mm20*2.810mm20Concrete/reinforced concrete
9"230mm20*2.8*1212mm26Concrete/reinforced concrete
12"300mm20*3.2*1212mm/15mm36Concrete/reinforced concrete
14"350mm20*3.2*1212mm/15mm40Concrete/reinforced concrete

Company Information:
WUHAN WAN BANG LASER DIAMOND TOOLS CO.,LTD, a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999.
As a leading manufacture in professional diamond tools,Wan bang specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our product including: Laser welded diamond concrete saw blades, asphalt saw blades, granite cutting disc, diamond core drill bits, diamond grinding cup wheels and grinding shoes, diamond wall saw blades, floor saw blades, ring saw, wire saw, tuck point blades.

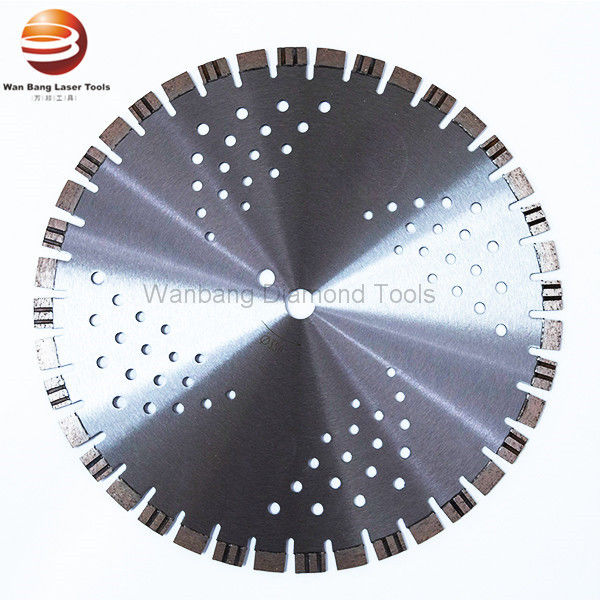

300mm 350mm Laser Welded Concrete Cutting Blades With Short Segments 1
300mm 350mm Laser Welded Concrete Cutting Blades With Short Segments 2
