| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 300-500mm |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case |
| Delivery Time: | 10-14 days delivery time |
| Payment Terms: | T/T |
| Finishing: | Painting,Other | Type: | Laser Welded Diamond Asphalt Saw Blade |
|---|---|---|---|
| Color: | Customize | Application: | Granite,Concrete,stone,marble |
| Product Name: | Diamond Saw Blade | Advantage: | Heat Resistance,Fast Cutting Speed,durable |
| Usage: | Asphalt, Green Concrete, Refractory Brick, Abrasive Materials Cutting | Feature: | Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge |
| Process: | Laser Welded | Material: | High Quality Diamonds |
| Teeth: | 24 | Diameter: | 14" |
| High Light: | 350mm Asphalt Cutting Blades,Laser Welded Asphalt Cutting Blades,24 teeth asphalt diamond blade |
||

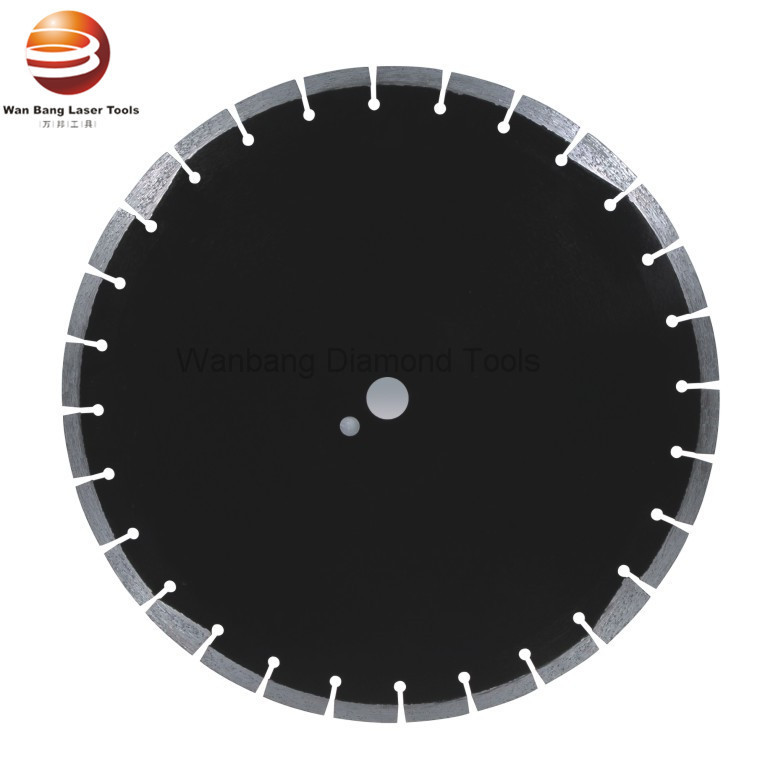

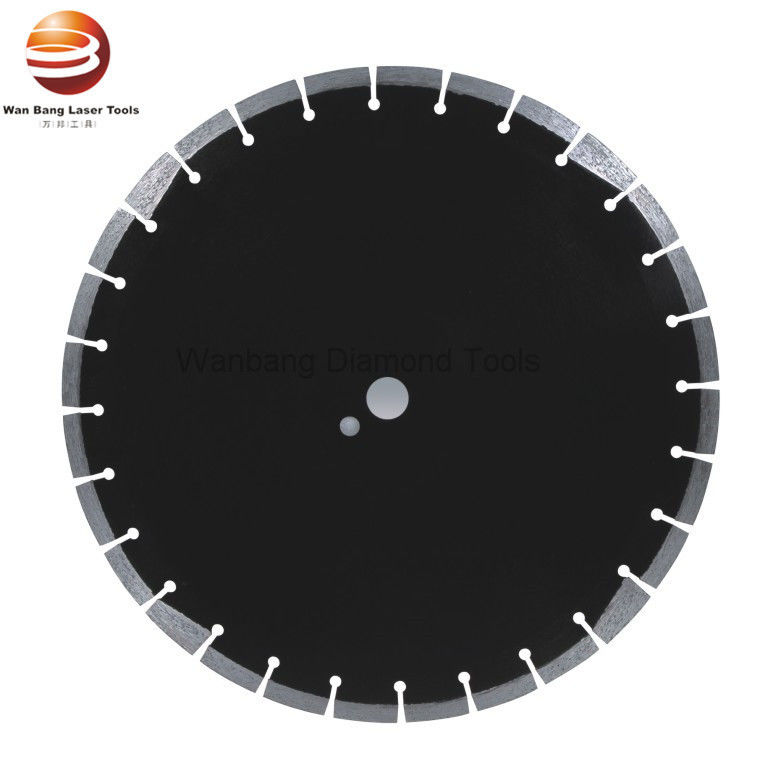

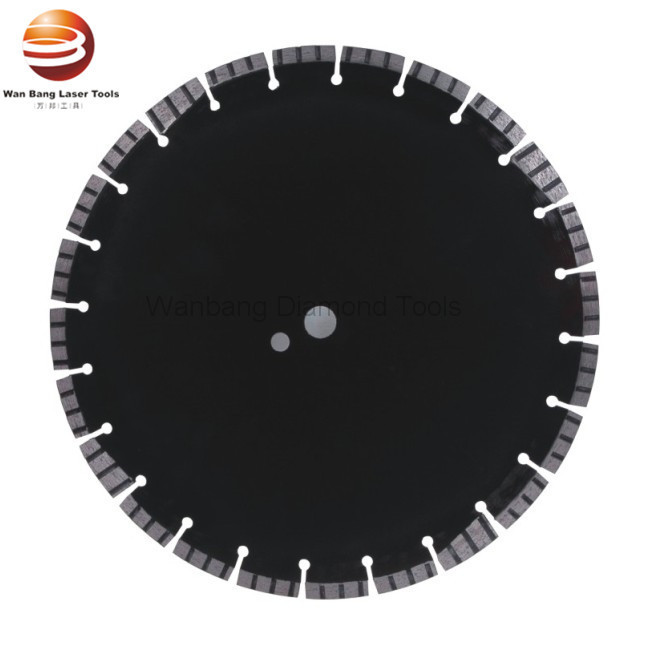

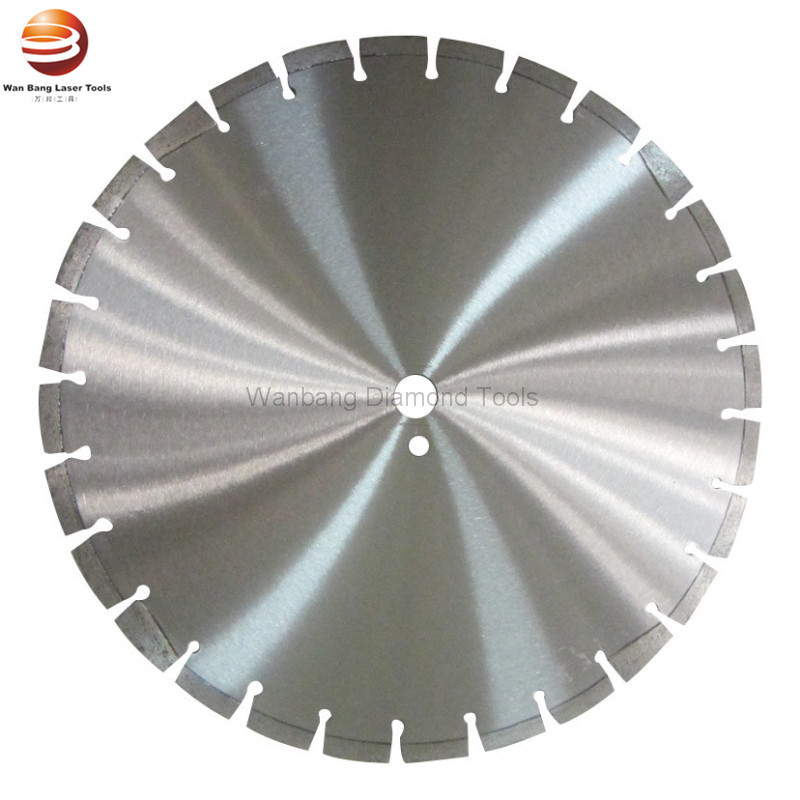

350mm Laser Welding Asphalt Cutting Blades with protective Segment
Application: Asphalt, fresh concrete, green concrete, asphalt with concrete, refractory bricks, other abrasive materials
* Higher quality diamond and long life
* Dry or wet cutting
* Applicable for table saw, walk-behind saw, handhelded saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with drive pin holes standard. Custom arbor sizes are available.
* Radius protection seg., slant protection seg., high protection seg..
* Other special specifications and colors can be produced by clients' require
| Specifications: | |||||
| Diameter | Seg. LxT(mm) | Seg. height | Seg.No. | Cutting Materials | |
| 12" | 300mm | 40*3.2 | 10/12mm | 21 | Asphalt/Green concrete |
| 14" | 350mm | 40*3.2 | 10/12mm | 24 | Asphalt/Green concrete |
| 16" | 400mm | 40*3.4 | 10/12mm | 28 | Asphalt/Green concrete |
| 18" | 450mm | 40*3.6 | 10/12mm | 32 | Asphalt/Green concrete |
| 20" | 500mm | 40*3.6 | 10/12mm | 36 | Asphalt/Green concrete |
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
