| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 4-7 inch |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case |
| Delivery Time: | 10-14 days delivery time |
| Payment Terms: | T/T |
| Abrasive: | Diamond | Shape: | Bowl-Shaped |
|---|---|---|---|
| Bonding Agent: | Metal | Hardness: | Hard,medium Hard, Soft |
| Product Name: | Diamond Grinding Cup Wheel | Application: | Concrete And Asphalt Floor |
| Color: | Customize,Red/Nature/Blue/Yellow | Type: | Single/Double Row/ Segmented Turbo |
| Usage: | Masonty,hard Concrete And Bricks,Ceramic Tile,Asphalt / Bricks / Reinforced Concrete Structure | Material: | Diamond + Metal |
| Advantage: | Fast And Smooth Grinding And Buffing | Size: | 100mm, 115mm, 125mm, 150mm, 180mm |
| High Light: | 100mm Concrete Cup Grinding Wheels,150mm Concrete Cup Grinding Wheels,concrete grinding double row cup wheel |
||

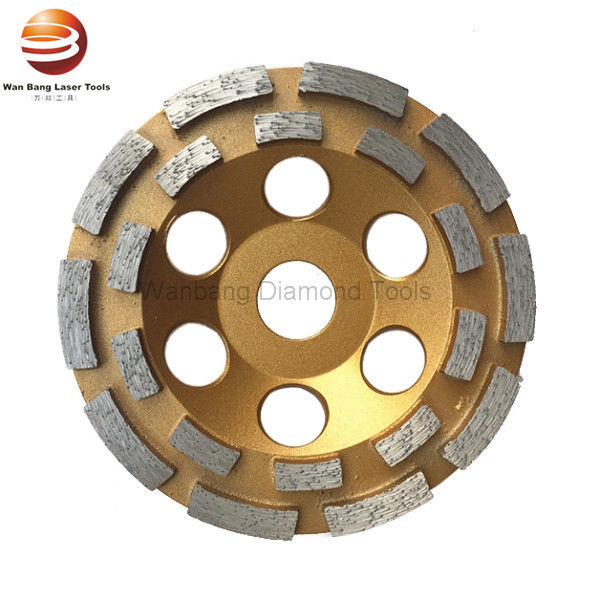

100mm 150mm 4 inch 6 inch Double Row Concrete Cup Grinding Wheels
Diamond turbo type grinding wheel,for grinding and buffing granite,marble,brick and other hard materials, with ISO certificated
* Fast and smooth grinding and buffing hard stone.
* Large grinding segments with heat treated steel bodies which provides increased durability and wheel life.
* Soft, medium, hard Bond
* Fine, Medium, and Course grit available
Specifications:
| Diameter | Seg.size | Seg.No. | Grade | Arbor | |
| 4" | 105mm | 28*7.5*5/18*7.5*5 | 8*8 | Standard | 7/8"-5/8"-M14 |
| 4" | 105mm | 28*7.5*5/18*7.5*5 | 8*8 | Pro. | 7/8"-5/8"-M14 |
| 4.5" | 115mm | 28*7.5*5/18*7.5*5 | 9*9 | Standard | 7/8"-5/8"-M14 |
| 4.5" | 115mm | 28*7.5*5/18*7.5*5 | 9*9 | Pro. | 7/8"-5/8"-M14 |
| 5" | 125mm | 28*7.5*5/18*7.5*5 | 10*10 | Standard | 7/8"-5/8"-M14 |
| 5" | 125mm | 28*7.5*5/18*7.5*5 | 10*10 | Pro. | 7/8"-5/8"-M14 |
| 6" | 150mm | 36*6*7/18*6*7 | 8*8 | Pro. | 7/8"-5/8"-M14 |
| 7" | 180mm | 30*8*5/20*7.5*5 | 14*14 | Standard | 7/8"-5/8"-M14 |
| 7" | 180mm | 30*8*5/20*7.5*5 | 14*14 | Pro. | 7/8"-5/8"-M14 |
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
