Handheld Concrete Core Drilling Machine 220V 110V

Basic Information
Place of Origin: China
Brand Name: WANBANG
Certification: ISO9001
Model Number: CDM330
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton case
Delivery Time: 10-14 days delivery time
Payment Terms: T/T
Color: Red Use: Core Drilling For Concrete
Type: Core Drill Bit Drills: Diamond Core Drill Bits
Product Name: Core Drilling Machine Application: Drilling Holes On Concrete And Reinforced Concrete, Granite And Marble
Advantage: Soft Start, Portable, Smooth Drilling, High Efficiency Quality: Top Grade
Max Concrete Diameter: 400mm Connector: G 1/2", 1 1/4"
High Light:

Core Drilling Machine 220V


Handheld Concrete Core Drilling Machine


Core Drilling Equipment 110V

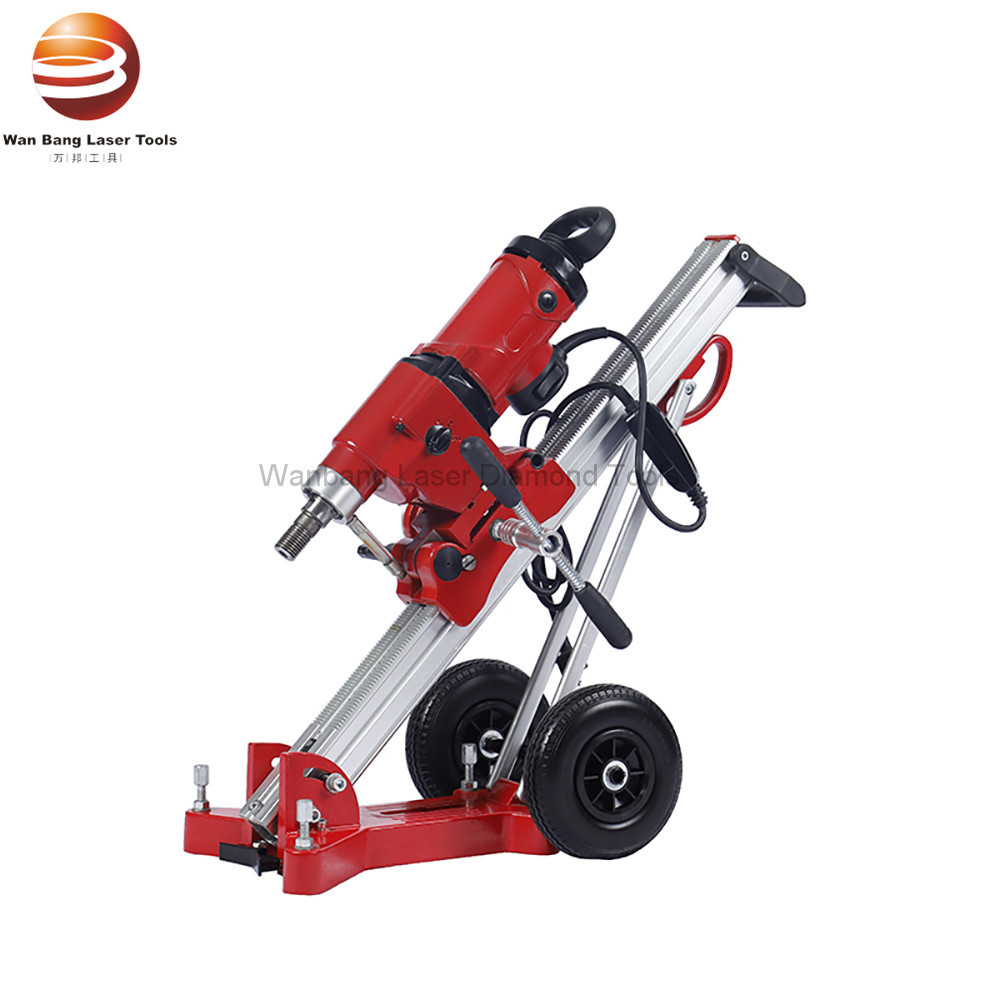

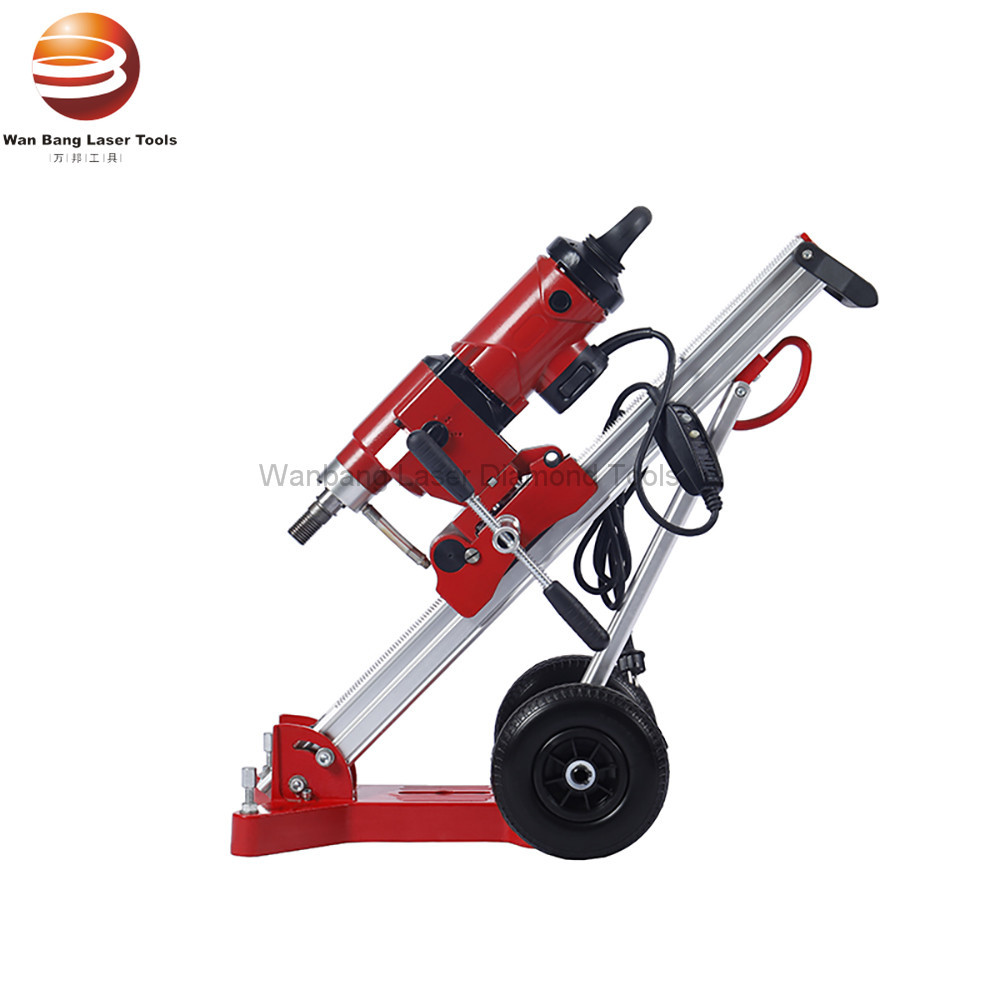

Hand Held Concrete Core Drilling Equipment Drilling Machine CDM330

Diamond core drill machine is a type of tool, which is especially designed for concrete, reinforced concrete, granite, marble, asphalt and other construction materials working. Ideal for installation of water holes, air holes, hood hole and other mechanical mounting holes.



** Soft start
** External carbon brushes
** Mechanical splipping clutch
** Oil-bath lubricated gearbox
** PRCD-fitted
** Aluminum-alloy shell
-- Oil level indicator and change option

Option: Pressure water tank / Wet and dry vacuum cleaner


Core Drilling Motor CDM330
Design Power 3300W
Actual Power 3100W
Voltage 220V/110V
3-speed Gearbox 400/800/1200rpm
Max.φ concrete 400mm
Spindle G 1/2" - 1 1/4"
Weight 15kgs




Handheld Concrete Core Drilling Machine 220V 110V 0Handheld Concrete Core Drilling Machine 220V 110V 1



Company Information:


WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.


Our product including: Laser welded diamond concrete saw blades, asphalt saw blades, granite cutting disc, diamond core drill bits, diamond grinding cup wheels and grinding shoes, diamond wall saw blades, floor saw blades, ring saw, wire saw, tuck point blades.





Provide cutting, drilling and grinding solutions in architecture, stone process, decoration and highway project, etc.


Why choose us:


Quality and delivery time is our number one top priority. Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
We have segments and core blanks in stock for 230-500mm blades and commonly used size drills, 3 factories and stable supply chains which can ensure the fast delivery for normal sizes and customized diamond tools as per clients' requests.


Handheld Concrete Core Drilling Machine 220V 110V 2
