| Place of Origin: | Wuhan |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 700mm-900mm |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case |
| Delivery Time: | 10-14 days delivery time |
| Payment Terms: | T/T |
| Manufacture Technology: | High Frequency Welded | Color: | Customized |
|---|---|---|---|
| Application: | Granite Slab Cutting | Product Name: | Diamond Saw Blade |
| Feature: | Low Noise, Silent Body, Durable Lifespan,straight And Smooth Cutting Edge | Material: | Diamonds,metal Bond Materials And Alloy Steel |
| Teeth: | 42/50, 46/56, 64 | Diameter: | 28" 32" 36" |
| Segment Height: | 12mm/15mm | ||
| High Light: | High Frequency Welded Granite Cutting Blades,800mm Granite Cutting Blades,900mm Granite Saw Blade |
||

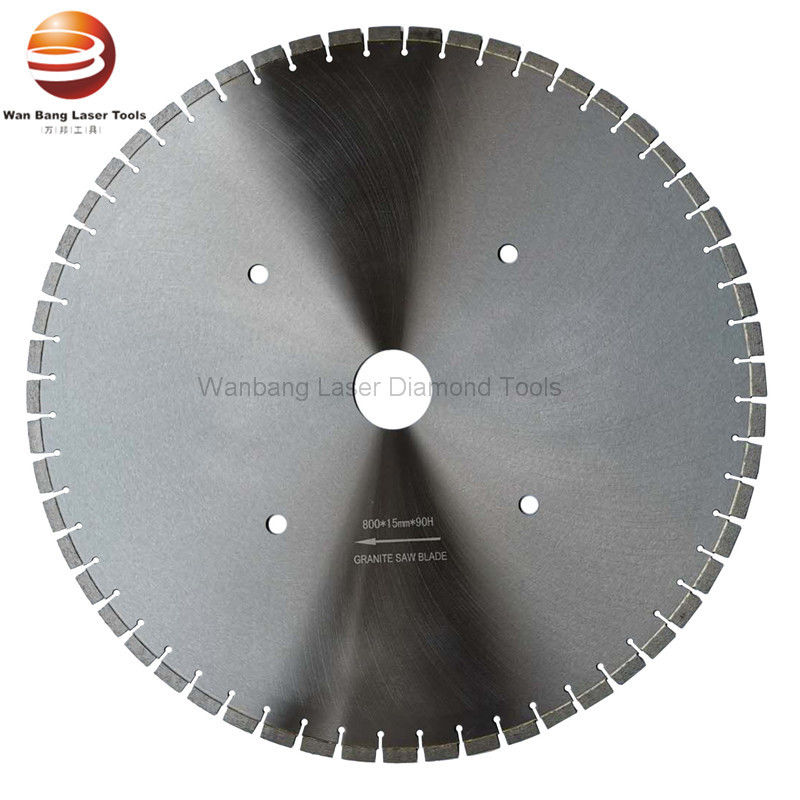

700mm 800mm 900mm High frequency welded granite cutting blades
Specifications:
| Diameter | Seg. LxT(mm) | Seg. height | Seg.No. | Cutting Materials | |
| 12" | 300mm | 39*3.2 | 13mm | 21 | Granite |
| 14" | 350mm | 40*3.3 | 12/15mm | 24 | Granite |
| 16" | 400mm | 40*3.8 | 12/15mm | 28 | Granite |
| 20" | 500mm | 40*4.4 | 12/15mm | 36 | Granite |
| 22" | 550mm | 40*4.4 | 12/15mm | 39 | Granite |
| 24" | 600mm | 40*4.9 | 12/15mm | 42 | Granite |
| 28" | 700mm | 37*5.2 | 12/15mm | 42/50 | Granite |
| 32" | 800mm | 37*5.2 | 12/15mm | 46/56 | Granite |
| 36" | 900mm | 40*6.8 | 12mm | 64 | Granite |
Application: Granite slab cutting
* Higher quality diamond and long life, smooth cutting edge
* Wet cutting
* Different quality grade: Economic, standard, premium
* 50/60mm arbor standard. Custom arbor sizes are available.
* Segment height: 12mm/15mm
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Why choose us:
Quality and delivery time is our number one top priority. Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
We have segments and core blanks in stock for 230-500mm blades and commonly used size drills, 3 factories and stable supply chains which can ensure the fast delivery for normal sizes and customized diamond tools as per clients' requests.
Our main products:
Laser welded diamond concrete saw blades, asphalt cutting blade, granite cutting disc, refractory brick diamond blade, diamond core drill bits for reinforced concrete, diamond grinding cup wheel and diamond grinding shoes, diamond wall saw blade, floor saw blade, ring saw for handheld machine, wire saw for demolition, tuck point blade for grooving, diamond segments.
