Concrete Cutting Laser Welded Diamond 230mm Saw Blade With Flat Segment

Basic Information
Place of Origin: China
Brand Name: WANBANG
Certification: ISO9001
Model Number: 230mm
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton case/wooden case/pallet
Delivery Time: 10-15 days delivery time
Payment Terms: T/T
Supply Ability: 10000pcs/month
Size: 230mm Blade Material: Diamond
Application: Stone,granite,Concrete,marble,masonry Material Product Name: Diamond Saw Blade
Usage: Dry Or Wet Cutting Advantage: Smooth And Fast Cutting, Long Cutting Life
Segment Height: 10-12mm Segment Thickness: 2.6
Welding: Laser Welded Teeth No.: 16
Finishing: Painting,Polishing, Abrasive Blasting, Laser Printing/Silk Printing/UV Printing Material: Diamond Blade+steel Body
HS Code: 82023910 Segment Type: Flat Segment
Customization Support: OEM, ODM, OBM
High Light:

Laser Welded 230mm Saw Blade


Concrete Cutting 230mm Saw Blade


230mm Diamond Blades With Flap Segment

Manufacturer 230mm Laser Welded Diamond Concrete Cutting Disk with Flat Segment


This type diamond saw blade are exported more for cutting standard stone & Ceramic Tiles, including the Porcelain and buildings and Bricks, opening window holes, doorways, demolition
of Concrete, Crystallized Tile etc.


Application: General construction materials, concrete slab, precast slab, granite, sandstone, stone slab, tile, concrete
* Higher quality diamond and long life/ fast cutting
* Dry or wet cutting
* Applicable for table saw, walk-behind saw, handhelded saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with drive pin holes standard. Custom arbor sizes are available.
* Other special specifications and colors can be produced by clients' require



Diameter Seg. LxT(mm) Seg. height Seg.No. Cutting Materials
4" 105mm 31*2.4 10/12mm 8 General purpose
4.5" 115mm 31*2.4 10/12mm 9 General purpose
5" 125mm 31*2.4 10/12mm 10 General purpose
6" 150mm 31*2.4 10/12mm 12 General purpose
7" 180mm 33*2.6 10/12mm 14 General purpose
9" 230mm 38*2.6 10/12mm 16 General purpose

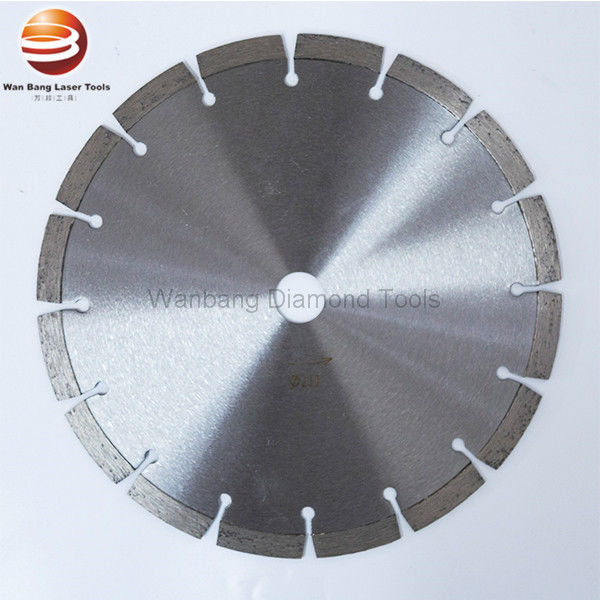

Concrete Cutting Laser Welded Diamond 230mm Saw Blade With Flat Segment 0

Concrete Cutting Laser Welded Diamond 230mm Saw Blade With Flat Segment 1

Also, Our product including:
Laser welded diamond saw blades for general purpose, concrete, wall, asphalt, brick, Laser welded diamond core bit for wall, concrete and engineering construction.
Diamond saw blades for granite, marble, sandstone, concrete, Diamond hot-pressed (sintered) blades, Diamond electroplated blades, Ring saw, Wire saw, Tuck point blades, Diamond cup wheel and all size of segments for circular saw, core bits, gangsaw , wire saw and so on...



Concrete Cutting Laser Welded Diamond 230mm Saw Blade With Flat Segment 2


Quality and delivery time is our number one top priority. As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
We have segments and core blanks in stock for 230-500mm blades and commonly used size drills, 3 factories and stable supply chains which can ensure the fast delivery for normal sizes and customized diamond tools as per clients' requests.


Company Information

WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.



Concrete Cutting Laser Welded Diamond 230mm Saw Blade With Flat Segment 3
