Finishing: | Painting,Polishing,Marking,Other | Type: | Dry And Wet Cutting Diamond Circular Saw Blade |
---|---|---|---|
Color: | Customizable/red/orange/green/blue/black/white | Application: | Granite,Concrete,stone,marble |
Product Name: | Diamond Saw Blade | Advantage: | Heat Resistance,Fast Cutting Speed,durable |
Usage: | Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting | Feature: | Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge |
Process: | Laser Welded | Material: | Diamond Blade+steel Body |
Teeth: | 10 | Diameter: | 5" |
Customization Support: | OEM, ODM, OBM | HS Code: | 82023910 |
Segment Type: | Turbo Segment | ||
High Light: | 125mm Diamond Saw Blades,ISO9001 Hot Pressed Diamond Saw Blades,125mm Laser Welded Saw Blades |

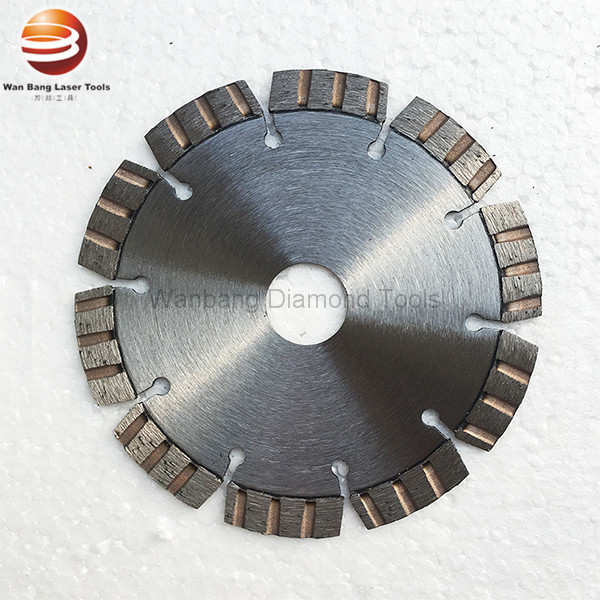

ISO9001 Laser welded Diamond Saw Blades With Turbo Segments for General Construction Material
High quality diamond saw blades can be used for cutting all kinds of non-metal material: concrete, reinforced concrete, asphalt, refractory materials, marble, granite, tile, ceramic sandstone, glass, and other general construction materials. Diamond cutting saw blades with different specifications from 105mm~3000 mm can be supplied according to customers' requirements.
Application: General construction materials, concrete slab, precast slab, granite, sandstone, stone slab, tile, concrete
* Higher quality diamond and long life/ fast cutting
* Dry or wet cutting
* Applicable for table saw, walk-behind saw, handhelded saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with drive pin holes standard. Custom arbor sizes are available.
* Other special specifications and colors can be produced by clients' require
Specifications: | |||||
Diameter | Seg. LxT(mm) | Seg. height | Seg.No. | Cutting Materials | |
4.5" | 115mm | 31.5*2.4 | 10/12mm | 9 | Concrete/General purpose |
5" | 125mm | 31.5*2.4 | 10/12mm | 10 | Concrete/General purpose |
6" | 150mm | 31.5*2.4 | 10/12mm | 12 | Concrete/General purpose |
7" | 180mm | 31.5*2.4 | 10/12mm | 14 | Concrete/General purpose |
9" | 230mm | 38.5*2.6 | 10/12mm | 16 | Concrete/General purpose |
12" | 300mm | 40*3.2 | 10/12mm | 21 | Concrete/General purpose |
14" | 350mm | 40*3.2 | 10/12mm | 24 | Concrete/General purpose |
16" | 400mm | 40*3.4 | 10/12mm | 28 | Concrete/General purpose |
18" | 450mm | 40*3.6 | 10/12mm | 32 | Concrete/General purpose |
20" | 500mm | 40*3.6 | 10/12mm | 36 | Concrete/General purpose |
24" | 600mm | 40*4.0 | 10/12mm | 42 | Concrete/General purpose |
26" | 650mm | 40*4.2 | 10/12mm | 42 | Concrete/General purpose |
28" | 700mm | 40*4.6 | 10/12mm | 45 | Concrete/General purpose |
32" | 800mm | 40*4.8 | 10/12mm | 52 | Concrete/General purpose |
36" | 900mm | 40*4.8 | 10/12mm | 60 | Concrete/General purpose |
Certificates
Company Introduction
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
