| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 5'' |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case/wooden case/pallet |
| Delivery Time: | 10-15 days delivery time |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Finishing: | Painting,Other | Type: | Continuous Turbo Saw Blade With Flange |
|---|---|---|---|
| Color: | Customize | Application: | Granite,Concrete,stone,marble |
| Product Name: | Diamond Saw Blade | Advantage: | Heat Resistance,Fast Cutting Speed,durable |
| Usage: | Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting | Feature: | Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge |
| Process: | Hot Press/cold Press | Material: | Small Size Diamonds,metal Bond Materials And Alloy Steel |
| Seg. Height: | 7/10mm | Diameter: | 5''/125mm |
| DxT(mm): | 125*2.2 | ||
| High Light: | Continuous Turbo Diamond Cutting Disks,Hot Pressed Sintered Diamond Cutting Disks,125mm Diamond Saw Blade With Flange |
||

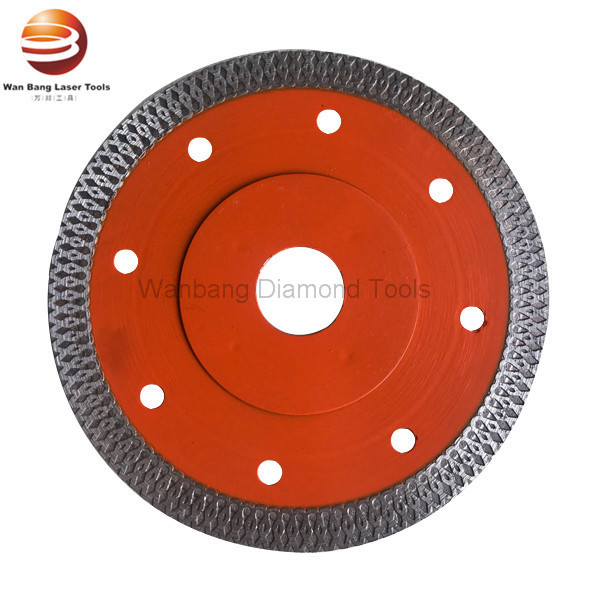

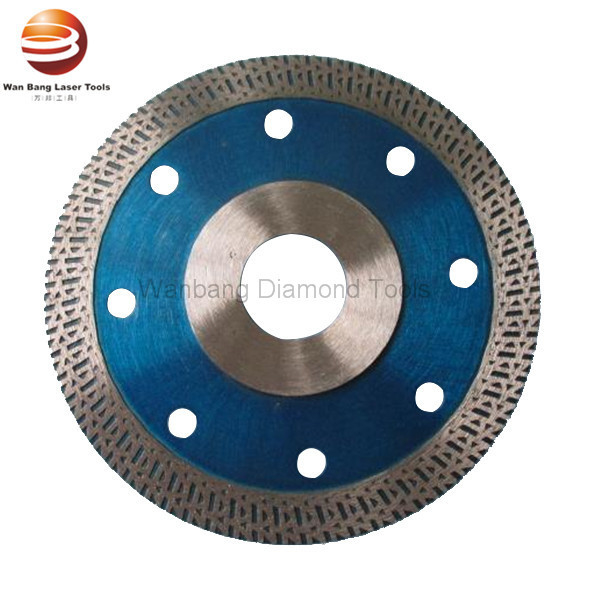

125mm Hot Pressed Sintered Continuous Turbo Diamond Saw Blade Cutting Disks With Flange
Application:
Granite, marble, concrete, tile, ceramic
* Hot pressed and cold pressed sintered
* Special designed and world-advanced brazing technology mahe the saw blades cut efficiently and fast.
* Dry or wet cutting
* 1" and 7/8" arbor with drive pin holes standard. Custom arbor sizes are available.
* Other special specifications and colors can be produced by clients' require
Specifications:
| Diameter | DxT(mm) | Seg. height | Cutting Materials | ||
| 4" | 105*2.0 | 7/10mm | General purpose | ||
| 4.3" | 110*2.0 | 7/10mm | General purpose | ||
| 4.5" | 115*2.0 | 7/10mm | General purpose | ||
| 5" | 125*2.2 | 7/10mm | General purpose | ||
| 6" | 150*2.2 | 7/10mm | General purpose | ||
| 7" | 180*2.4 | 7/10mm | General purpose | ||
| 9" | 230*2.6 | 7/10mm | General purpose | ||
| 12" | 300*3.0 | 7/10mm | General purpose | ||
| 14" | 350*3.0 | 7/10mm | General purpose | ||
Company Information
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
