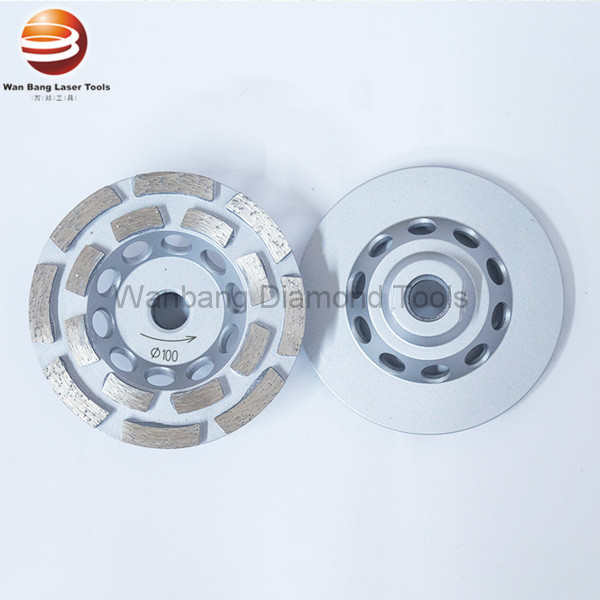

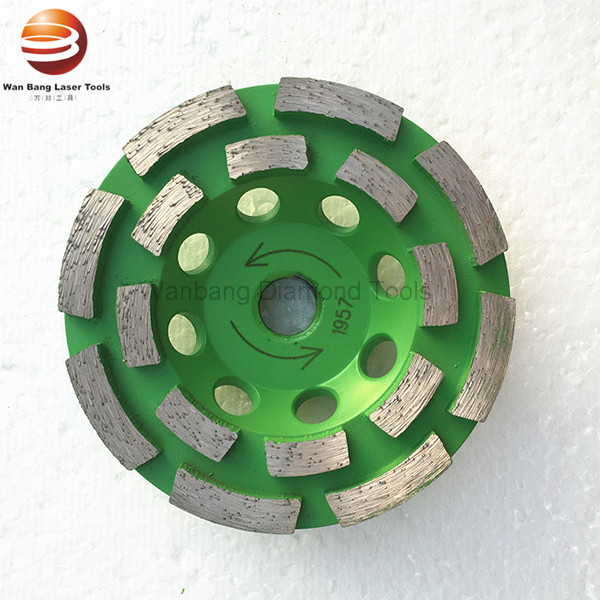

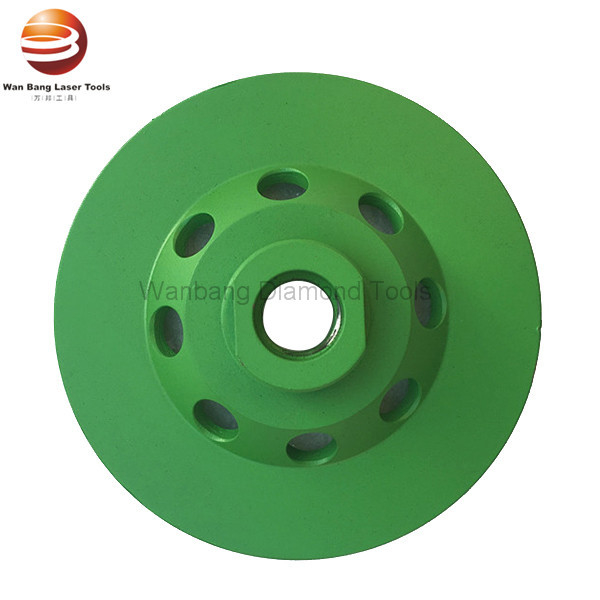

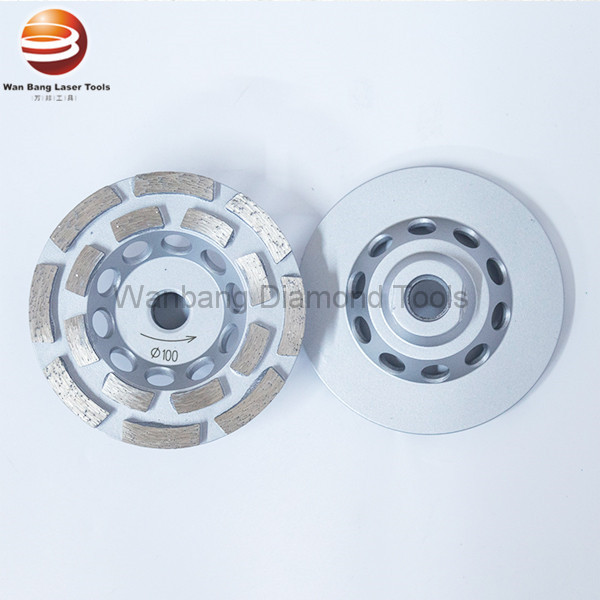

105mm / 4inch Double Row Segmented Diamond Grinding Cup

Basic Information
Place of Origin: China
Brand Name: WANBANG
Certification: ISO9001
Model Number: 4 inch
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton case/wooden case/pallet
Delivery Time: 10-15 days delivery time
Payment Terms: T/T
Supply Ability: 10000pcs/month
Abrasive: Diamond Shape: Bowl-Shaped
Bonding Agent: Metal Hardness: Hard,medium Hard, Soft
Product Name: Diamond Grinding Cup Wheel Application: Concrete And Asphalt Floor
Color: Customize,Red/Nature/Blue/Yellow Type: Single/Double Row/ Segmented Turbo
Usage: Masonty,hard Concrete And Bricks,Ceramic Tile,Asphalt / Bricks / Reinforced Concrete Structure Material: Diamond + Metal
Advantage: Fast Cutting Speed,Operator Safety Diameter: 105mm
Seg.size: 28*7.5*5/18*7.5*5 Seg.No.: 8*8
Arbor: 7/8"-5/8"-M14 Grade: Standard, Professional
High Light:

Double Row Segmented Diamond Grinding Cup

,

4inch Segmented Diamond Grinding Cup

,

105mm Double Row Diamond Cup Wheel

105mm 4'' Double Row Diamond Segments Floor Grinding Cup Wheels



Diamond floor grinding cup wheels- Double Row
Applications: Rapid removal of concrete, granite, asphalt, marble and other construction materials
* Good for general grinding and heavier stock removal
* Large grinding segments with heat treated steel bodies which provides increased durability and wheel life.
* Soft, medium, hard Bond
* Fine, Medium, and Course grit available



Specifications:



Diameter Seg.size Seg.No. Grade Arbor
4" 105mm 28*7.5*5/18*7.5*5 8*8 Standard 7/8"-5/8"-M14
4" 105mm 28*7.5*5/18*7.5*5 8*8 Pro. 7/8"-5/8"-M14
4.5" 115mm 28*7.5*5/18*7.5*5 9*9 Standard 7/8"-5/8"-M14
4.5" 115mm 28*7.5*5/18*7.5*5 9*9 Pro. 7/8"-5/8"-M14
5" 125mm 28*7.5*5/18*7.5*5 10*10 Standard 7/8"-5/8"-M14
5" 125mm 28*7.5*5/18*7.5*5 10*10 Pro. 7/8"-5/8"-M14
6" 150mm 36*6*7/18*6*7 8*8 Pro. 7/8"-5/8"-M14
7" 180mm 30*8*5/20*7.5*5 14*14 Standard 7/8"-5/8"-M14
7" 180mm 30*8*5/20*7.5*5 14*14 Pro. 7/8"-5/8"-M14



105mm / 4inch Double Row Segmented Diamond Grinding Cup 0105mm / 4inch Double Row Segmented Diamond Grinding Cup 1105mm / 4inch Double Row Segmented Diamond Grinding Cup 2



Certificates

105mm / 4inch Double Row Segmented Diamond Grinding Cup 3



Company Information



WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.



As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
