ISO9001 125mm Bowl Shaped Double Row Diamond Cup Wheel For Floor Grinding

Basic Information
Place of Origin: China
Brand Name: WANBANG
Certification: ISO9001
Model Number: 5 inch
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton case/wooden case/pallet
Delivery Time: 10-15 days delivery time
Payment Terms: T/T
Supply Ability: 10000pcs/month
Abrasive: Diamond Shape: Bowl-Shaped
Bonding Agent: Metal Hardness: Hard,medium Hard, Soft
Product Name: Diamond Grinding Cup Wheel Application: Concrete And Asphalt Floor
Color: Customize,Red/Nature/Blue/Yellow Type: Single/Double Row/ Segmented Turbo
Usage: Masonty,hard Concrete And Bricks,Ceramic Tile,Asphalt / Bricks / Reinforced Concrete Structure Material: Diamond + Metal
Advantage: Fast Cutting Speed,Operator Safety Diameter: 125mm
Seg.size: 28*7.5*5/18*7.5*5 Seg.No.: 10*10
Arbor: 7/8"-5/8"-M14 Grade: Standard, Professional
High Light:

125mm Double Row Diamond Cup Wheel

,

ISO9001 Double Row Diamond Cup Wheel

,

125mm Floor Grinding Wheels

125mm 5'' Bowl Shaped Double Row Diamond Grinding Cup Wheels for Floor Grinding



Diamond floor grinding cup wheels- Double Row
Applications: Rapid removal of concrete, granite, asphalt, marble and other construction materials
* Good for general grinding and heavier stock removal
* Large grinding segments with heat treated steel bodies which provides increased durability and wheel life.
* Soft, medium, hard Bond
* Fine, Medium, and Course grit available



Specifications:



Diameter Seg.size Seg.No. Grade Arbor
4" 105mm 28*7.5*5/18*7.5*5 8*8 Standard 7/8"-5/8"-M14
4" 105mm 28*7.5*5/18*7.5*5 8*8 Pro. 7/8"-5/8"-M14
4.5" 115mm 28*7.5*5/18*7.5*5 9*9 Standard 7/8"-5/8"-M14
4.5" 115mm 28*7.5*5/18*7.5*5 9*9 Pro. 7/8"-5/8"-M14
5" 125mm 28*7.5*5/18*7.5*5 10*10 Standard 7/8"-5/8"-M14
5" 125mm 28*7.5*5/18*7.5*5 10*10 Pro. 7/8"-5/8"-M14
6" 150mm 36*6*7/18*6*7 8*8 Pro. 7/8"-5/8"-M14
7" 180mm 30*8*5/20*7.5*5 14*14 Standard 7/8"-5/8"-M14
7" 180mm 30*8*5/20*7.5*5 14*14 Pro. 7/8"-5/8"-M14

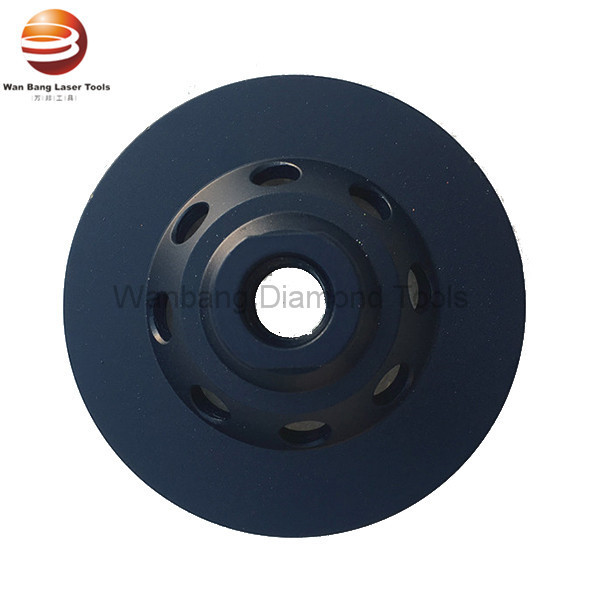

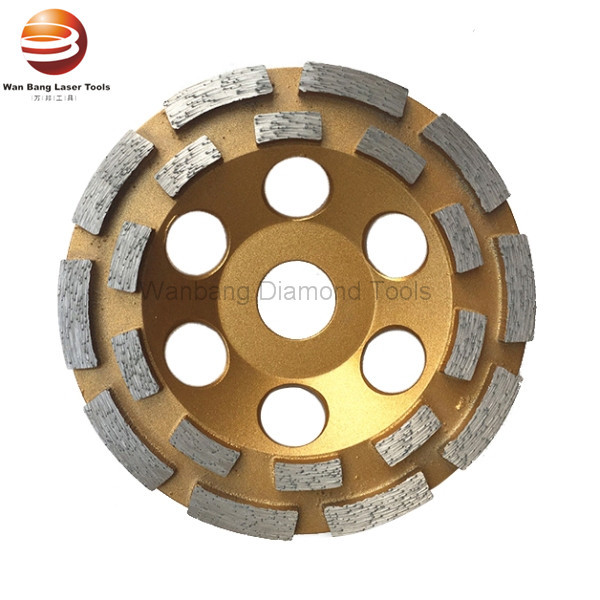

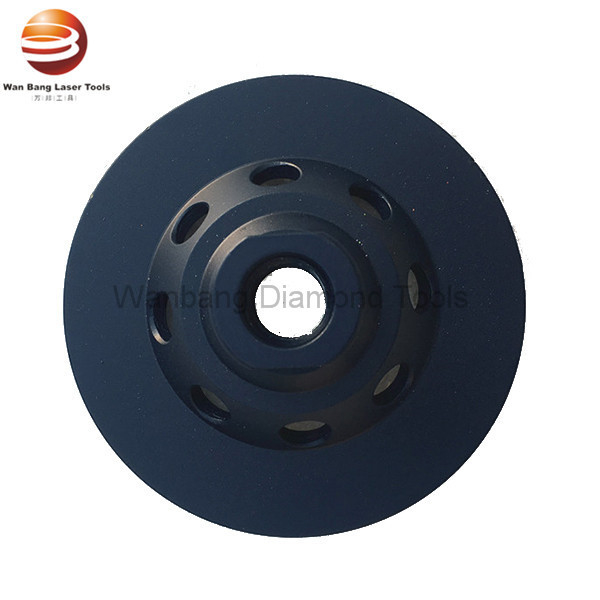

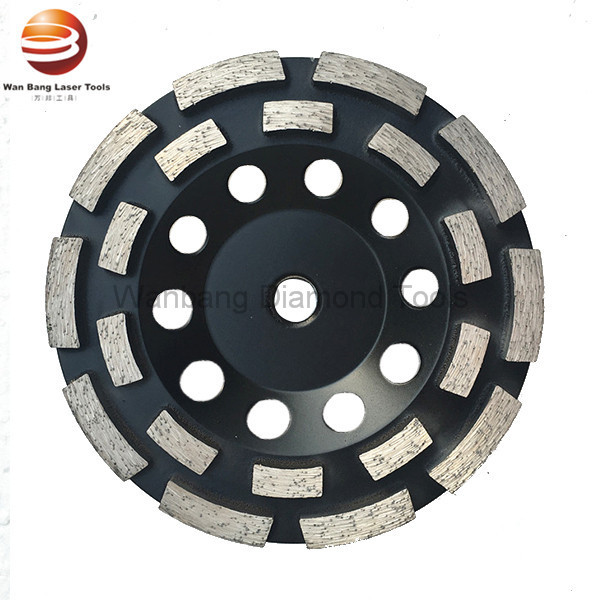

ISO9001 125mm Bowl Shaped Double Row Diamond Cup Wheel For Floor Grinding 0

ISO9001 125mm Bowl Shaped Double Row Diamond Cup Wheel For Floor Grinding 1

ISO9001 125mm Bowl Shaped Double Row Diamond Cup Wheel For Floor Grinding 2
