| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 7 inch |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case/wooden case/pallet |
| Delivery Time: | 10-15 days delivery time |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Abrasive: | Diamond | Shape: | Bowl-Shaped |
|---|---|---|---|
| Bonding Agent: | Metal | Hardness: | Hard,medium Hard, Soft |
| Product Name: | Diamond Grinding Cup Wheel | Application: | Concrete And Asphalt Floor |
| Color: | Customize,Red/Nature/Blue/Yellow | Type: | Single/Double Row/ Segmented Turbo |
| Usage: | Masonty,hard Concrete And Bricks,Ceramic Tile,Asphalt / Bricks / Reinforced Concrete Structure | Material: | Diamond + Metal |
| Advantage: | Fast Cutting Speed,Operator Safety | Diameter: | 180mm |
| Seg.size: | 30*8*5/20*7.5*5 | Seg.No.: | 14*14 |
| Arbor: | 7/8"-5/8"-M14 | Grade: | Standard, Professional |
| High Light: | Double Row Diamond Grinding Cup Wheels,Diamond Grinding Cup Wheels 180mm,180mm Double Row Diamond Cup Wheel |
||

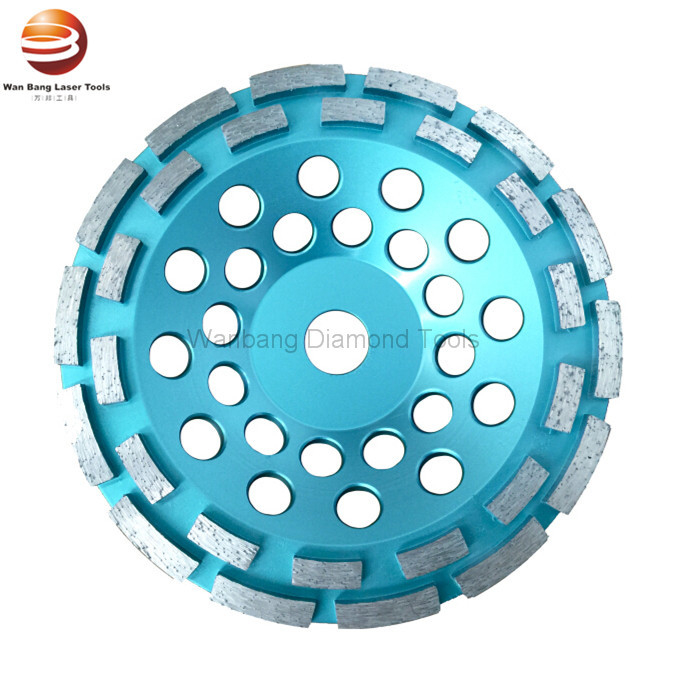

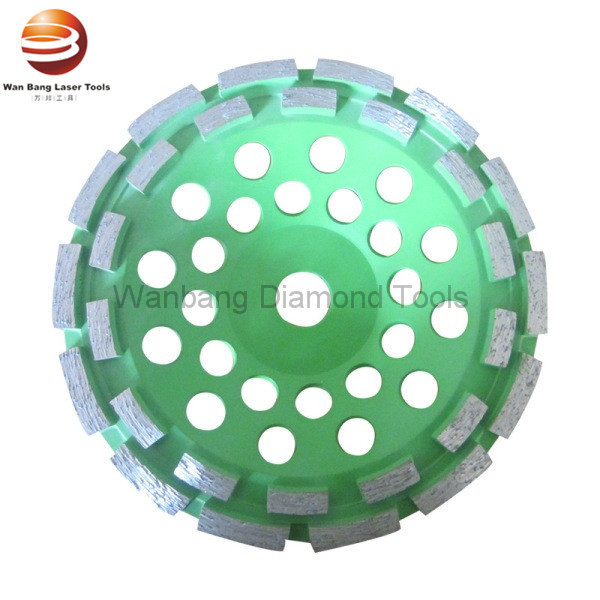

180mm 7'' Double Row Diamond Grinding Cup Wheels for Floor Removal
Diamond floor grinding cup wheels- Double Row
Applications: Rapid removal of concrete, granite, asphalt, marble and other construction materials
* Good for general grinding and heavier stock removal
* Large grinding segments with heat treated steel bodies which provides increased durability and wheel life.
* Soft, medium, hard Bond
* Fine, Medium, and Course grit available
Specifications:
| Diameter | Seg.size | Seg.No. | Grade | Arbor | |
| 4" | 105mm | 28*7.5*5/18*7.5*5 | 8*8 | Standard | 7/8"-5/8"-M14 |
| 4" | 105mm | 28*7.5*5/18*7.5*5 | 8*8 | Pro. | 7/8"-5/8"-M14 |
| 4.5" | 115mm | 28*7.5*5/18*7.5*5 | 9*9 | Standard | 7/8"-5/8"-M14 |
| 4.5" | 115mm | 28*7.5*5/18*7.5*5 | 9*9 | Pro. | 7/8"-5/8"-M14 |
| 5" | 125mm | 28*7.5*5/18*7.5*5 | 10*10 | Standard | 7/8"-5/8"-M14 |
| 5" | 125mm | 28*7.5*5/18*7.5*5 | 10*10 | Pro. | 7/8"-5/8"-M14 |
| 6" | 150mm | 36*6*7/18*6*7 | 8*8 | Pro. | 7/8"-5/8"-M14 |
| 7" | 180mm | 30*8*5/20*7.5*5 | 14*14 | Standard | 7/8"-5/8"-M14 |
| 7" | 180mm | 30*8*5/20*7.5*5 | 14*14 | Pro. | 7/8"-5/8"-M14 |
Certificates
Company Information
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Factory&Workshop
