| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 300mm |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case/wooden case/pallet |
| Delivery Time: | 10-15 days delivery time |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Finishing: | Painting, Polishing, Abrasive Blasting, Other | Type: | Laser Welded Diamond Asphalt Saw Blade |
|---|---|---|---|
| Color: | Customize/nature/red/orange/blue/white/yellow/green Etc. | Application: | Asphalt, Fresh Concrete, Green Concrete |
| Product Name: | Diamond Saw Blade | Advantage: | Heat Resistance,Fast Cutting Speed,durable |
| Usage: | Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting | Feature: | Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge |
| Process: | Laser Welded | Material: | High Quality Diamonds |
| Teeth: | 21 | Diameter: | 300mm/12'' |
| Seg. LxT(mm): | 40*3.2 | Seg. Height: | 10/12mm |
| Cutting Materials: | Asphalt/Green Concrete | ||
| High Light: | Abrasive Blasting Diamond Saw Blade,300mm Asphalt Diamond Saw Blade |
||

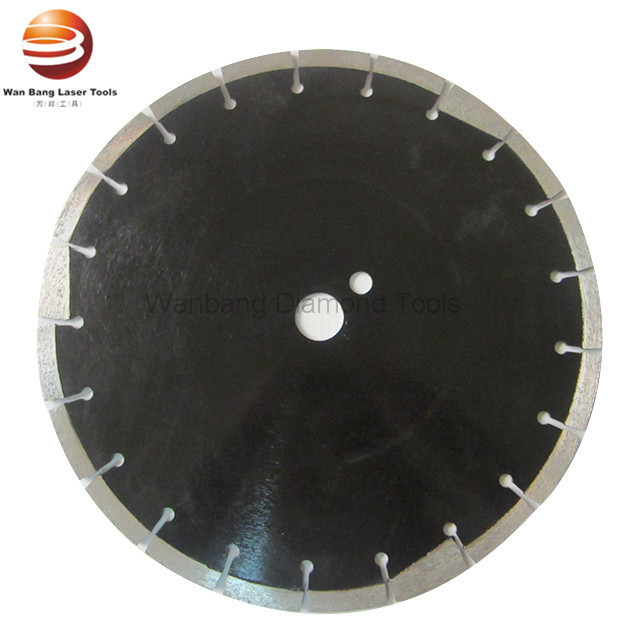

Factory Professional 12'' 300mm Laser Welded Diamond Saw Blade With Protective Segments for Asphalt
Application: Asphalt, fresh concrete, green concrete, asphalt with concrete, cinder bricks, other abrasive materials
* Higher quality diamond and long life
* Dry or wet cutting
* Applicable for table saw, handheld saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with one drive pin holes standard. Arbor sizes 27mm, 50mm are available.
* Radius protection seg., slant protection seg., high protection seg..
* Other special specifications and colors can be produced by clients' require
| Specifications: | |||||
| Diameter | Seg. LxT(mm) | Seg. height | Seg.No. | Cutting Materials | |
| 12" | 300mm | 40*3.2 | 10/12mm | 21 | Asphalt/Green concrete |
| 14" | 350mm | 40*3.2 | 10/12mm | 24 | Asphalt/Green concrete |
| 16" | 400mm | 40*3.4 | 10/12mm | 28 | Asphalt/Green concrete |
| 18" | 450mm | 40*3.6 | 10/12mm | 32 | Asphalt/Green concrete |
| 20" | 500mm | 40*3.6 | 10/12mm | 36 | Asphalt/Green concrete |
Certificates
Company Information
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our product including: Laser welded diamond concrete saw blades, asphalt saw blades, granite cutting disc, diamond core drill bits, diamond grinding cup wheels and grinding shoes, diamond wall saw blades, floor saw blades, ring saw, wire saw, tuck point blades.
Manufacturing Process
Factory&Workshop
