| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 90mm |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case/wooden case/pallet |
| Delivery Time: | 10-15 days delivery time |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Finishing: | Painting,Other | Type: | Laser Welded Diamond Asphalt Saw Blade |
|---|---|---|---|
| Color: | Customizable/red/orange/green/blue/black/white | Application: | Granite,concrete,stone,marble |
| Product Name: | Diamond Saw Blade | Advantage: | Heat Resistance,Fast Cutting Speed,durable |
| Usage: | Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting | Feature: | Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge |
| Process: | Laser Welded | Material: | Small Size Diamonds,metal Bond Materials And Alloy Steel |
| Teeth: | 16 | Diameter: | 3.5''/90mm |
| High Light: | High Frequency Welded Diamond Saw Blade,90mm Ground Segment Diamond Saw Blade,Concrete Grooving Tuck Point Blade |
||

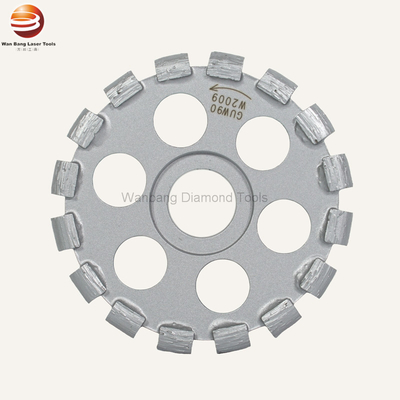

90mm Ground Segment Top High-frequency Welded Diamond Saw Blade for Concrete Grooving
Application: Wall grooving, ground grooving
* Higher quality diamond and long life
* Dry or wet cutting
* Custom segments thickness are available.
* Flat top segment and Roof top segment are available.
Specifications:
| Diameter | Seg. LxT(mm) | Seg. height | Seg.No. | Cutting Materials | |
| 4" | 105mm | 31*6.4 | 10mm | 8 | Concrete / Asphalt |
| 4.5" | 115mm | 31*6.4 | 10mm | 9 | Concrete / Asphalt |
| 5" | 125mm | 31*6.4 | 10mm | 10 | Concrete / Asphalt |
| 6" | 150mm | 31*6.4 | 10mm | 12 | Concrete / Asphalt |
| 7" | 180mm | 33*6.4 | 10mm | 14 | Concrete / Asphalt |
| 9" | 230mm | 33*6.4 | 10mm | 16 | Concrete / Asphalt |
| 12" | 300mm | 40*6.4 | 10mm | 21 | Concrete / Asphalt |
| 14" | 350mm | 40*6.4 | 10mm | 24 | Concrete / Asphalt |
Certificates
Company Information
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
