Type: | Segmented Wet Cut Saw Blade | Color: | Customized |
---|---|---|---|
Application: | Buildings And Walls Delimotion, Opening Window Holes, Doorways | Product Name: | Diamond Wall Saw Blade |
Advantage: | Fast Cutting Speed, Long Life Time | Usage: | Reinforced Concrete Structure, Concrete Wall, Concrete Slab |
Feature: | Durable,Unique Firmula,High Speed.Straight Smooth Edge | Process: | Laser Welded |
Diameter: | 55 Inch | ||
High Light: | Reinforced Demolition Concrete Wall Saw Blade,Concrete Wall Saw Blade 1400mm,Laser Welded Diamond Wall Saw Blades |

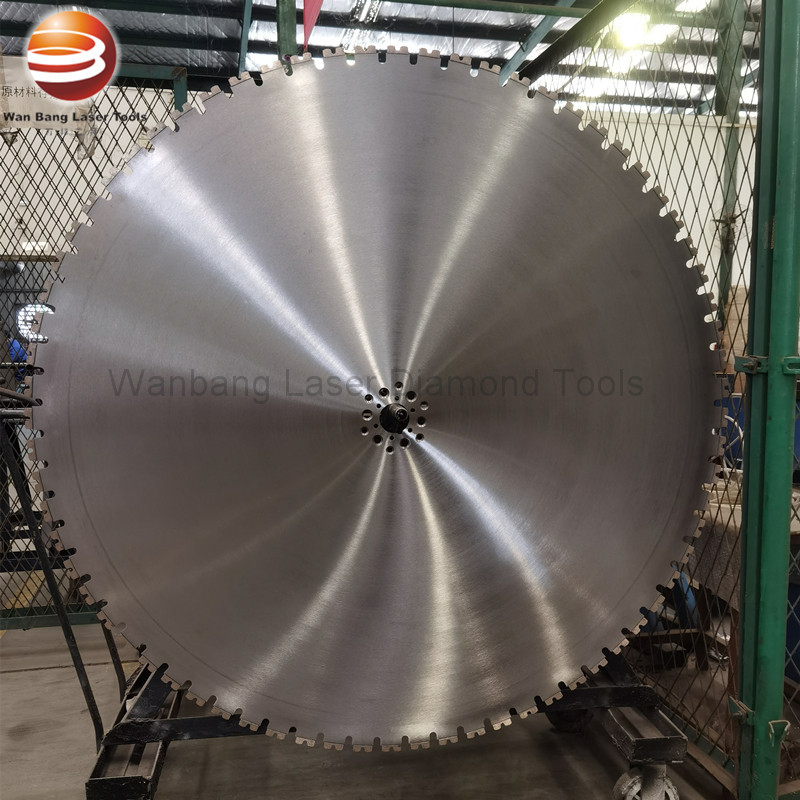

1400mm Laser Welded Reinforced Concrete Wall Sawing Demolition blade
Application: Expert for demolition reinforced concrete construction, including the partial modification and buildings and walls delimotion, opening window holes, doorways, demolition of reinforced concrete bridges etc.
* Higher quality diamond and long life/ fast cutting
* Wet cutting
* Different quality grade: premium, professional
* Custom arbor sizes and pin holes are available.
* Other special specifications and colors can be produced by clients' require
Specifications:
Diameter | Seg. LxT(mm) | Seg. height | Cutting Materials | ||
24" | 600mm | 40*4.8 | 13mm | Concrete/reinforced concrete | |
26" | 650mm | 40*4.8 | 13mm | Concrete/reinforced concrete | |
28" | 700mm | 40*4.8 | 13mm | Concrete/reinforced concrete | |
32" | 800mm | 40*4.8 | 13mm | Concrete/reinforced concrete | |
36" | 900mm | 40*4.8 | 13mm | Concrete/reinforced concrete | |
42" | 1050mm | 40*4.8 | 13mm | Concrete/reinforced concrete | |
48" | 1220mm | 40*4.8/5.2 | 13mm | Concrete/reinforced concrete | |
60" | 1500mm | 40*4.8/5.2 | 13mm | Concrete/reinforced concrete | |
64" | 1600mm | 40*4.8/5.2 | 13mm | Concrete/reinforced concrete |
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our main products:
Laser welded diamond concrete saw blades, asphalt cutting blade, granite cutting disc, refractory brick diamond blade, diamond core drill bits for reinforced concrete, diamond grinding cup wheel and diamond grinding shoes, diamond wall saw blade, floor saw blade, ring saw for handheld machine, wire saw for demolition, tuck point blade for grooving, diamond segments.
