| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 300mm |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case |
| Delivery Time: | 10-14 days delivery time |
| Payment Terms: | T/T |
| Finishing: | Painting,Other | Type: | Laser Welded Diamond Asphalt Saw Blade |
|---|---|---|---|
| Color: | Customize | Application: | Asphalt, Fresh Concrete, Green Concrete |
| Product Name: | Diamond Saw Blade | Advantage: | Heat Resistance,Fast Cutting Speed,durable |
| Usage: | Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting | Feature: | Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge |
| Process: | Laser Welded | Material: | High Quality Diamonds |
| Teeth: | 21 | Diameter: | 300mm |
| High Light: | Laser Welded Asphalt Circular Saw Blade,Asphalt Circular Saw Blade 12 Inch,21 teeth asphalt saw blade |
||

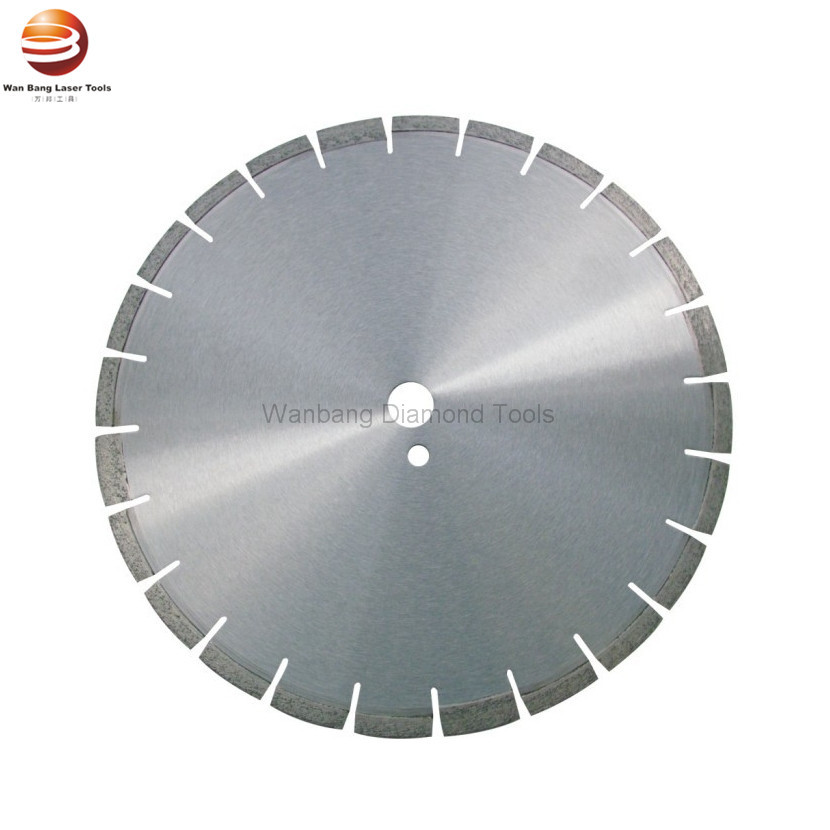

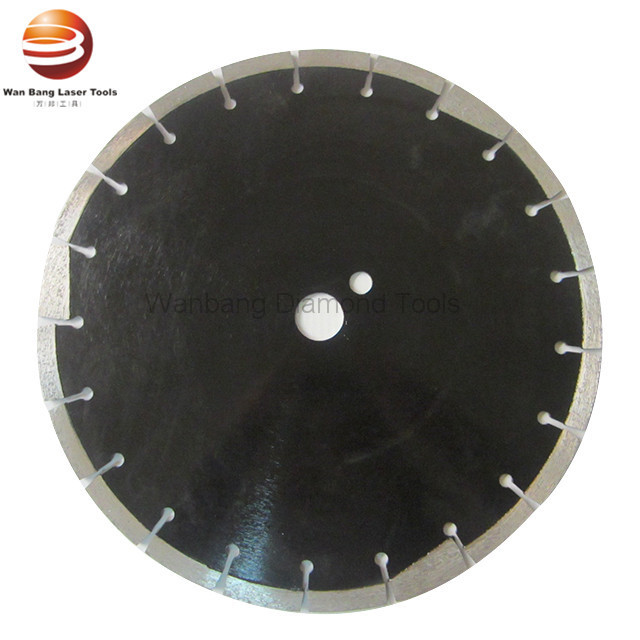

12 inch Laser Welded Cutting Disc for Fresh Concrete and Asphalt
Application: Asphalt, fresh concrete, green concrete, asphalt with concrete, cinder bricks, other abrasive materials
* Higher quality diamond and long life
* Dry or wet cutting
* Applicable for table saw, handheld saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with one drive pin holes standard. Arbor sizes 27mm, 50mm are available.
* Radius protection seg., slant protection seg., high protection seg..
* Other special specifications and colors can be produced by clients' require
| Specifications: | |||||
| Diameter | Seg. LxT(mm) | Seg. height | Seg.No. | Cutting Materials | |
| 12" | 300mm | 40*3.2 | 10/12mm | 21 | Asphalt/Green concrete |
| 14" | 350mm | 40*3.2 | 10/12mm | 24 | Asphalt/Green concrete |
| 16" | 400mm | 40*3.4 | 10/12mm | 28 | Asphalt/Green concrete |
| 18" | 450mm | 40*3.6 | 10/12mm | 32 | Asphalt/Green concrete |
| 20" | 500mm | 40*3.6 | 10/12mm | 36 | Asphalt/Green concrete |
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our product including: Laser welded diamond concrete saw blades, asphalt saw blades, granite cutting disc, diamond core drill bits, diamond grinding cup wheels and grinding shoes, diamond wall saw blades, floor saw blades, ring saw, wire saw, tuck point blades.
