| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001:2015 |
| Model Number: | 230mm |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case/wooden case/pallet |
| Delivery Time: | 15 days delivery time |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Size: | 230mm | Blade Material: | Diamond, Steel |
|---|---|---|---|
| Welding Technology: | Laser Welding | Application: | Concrete Wall, Reinforced Concrete Bridge, Old Concrete Road, Cured Concrete Slab |
| Product Name: | Diamond Saw Blade | Advantage: | Long Cutting Lifetime |
| Usage: | Dry Or Wet Cutting, | Segment Height: | 10-12mm |
| Segment Thickness: | 2.4mm | Teeth No.: | 16 |
| Diameter: | 9'' | Color: | Customizable/red/orange/green/blue/black/white |
| Place Of Origin: | Wuhan, China | Segment Type: | Flat Segments |
| Customization Support: | OEM, ODM, OBM | ||
| High Light: | Concrete Saw Blades With Flat Segments,230mm Concrete Saw Blades,230mm Diamond Concrete Blades |
||

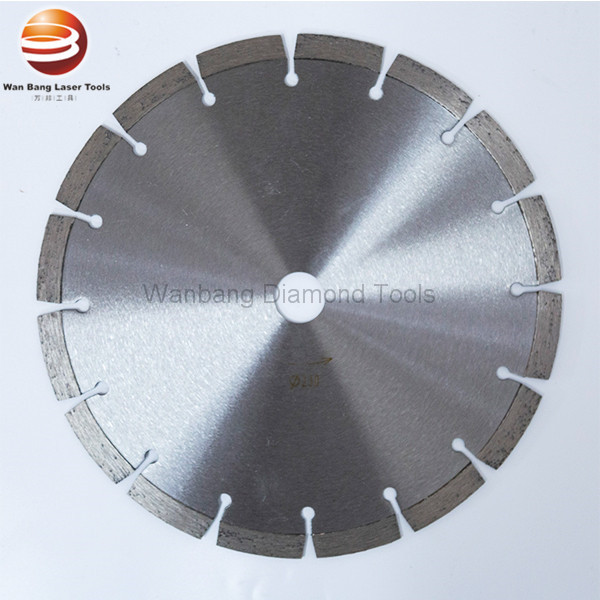

Factory 9'' 230mm Concrete Cutting Tools Saw Blades with Flat Segments
Laser welded diamond concrete saw blade for fast cutting on a various concrete, masonry and construction materials. They are designed for heavy saw cutters who want to cut different materials without having to change blade. These saw blades feature undercut protection for use on asphalt and green concrete.
Application: General construction materials, concrete slab, precast slab, granite, sandstone, stone slab, tile, concrete
* Higher quality diamond for fast cutting with good life time
* Dry or wet cutting
* Applicable for table saw, walk-behind saw, handhelded saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with drive pin holes standard. Custom arbor sizes are available.
* Other special specifications and colors can be produced by clients' require.
| Specifications: | |||||
| Diameter | Seg. LxT(mm) | Seg. height | Seg.No. | Cutting Materials | |
| 4.5" | 115mm | 31.5*2.4 | 10/12mm | 9 | Concrete/General purpose |
| 5" | 125mm | 31.5*2.4 | 10/12mm | 10 | Concrete/General purpose |
| 6" | 150mm | 31.5*2.4 | 10/12mm | 12 | Concrete/General purpose |
| 7" | 180mm | 31.5*2.4 | 10/12mm | 14 | Concrete/General purpose |
| 9" | 230mm | 38.5*2.6 | 10/12mm | 16 | Concrete/General purpose |
| 12" | 300mm | 40*3.2 | 10/12mm | 21 | Concrete/General purpose |
| 14" | 350mm | 40*3.2 | 10/12mm | 24 | Concrete/General purpose |
| 16" | 400mm | 40*3.4 | 10/12mm | 28 | Concrete/General purpose |
| 18" | 450mm | 40*3.6 | 10/12mm | 32 | Concrete/General purpose |
| 20" | 500mm | 40*3.6 | 10/12mm | 36 | Concrete/General purpose |
| 24" | 600mm | 40*4.0 | 10/12mm | 42 | Concrete/General purpose |
| 26" | 650mm | 40*4.2 | 10/12mm | 42 | Concrete/General purpose |
| 28" | 700mm | 40*4.6 | 10/12mm | 45 | Concrete/General purpose |
| 32" | 800mm | 40*4.8 | 10/12mm | 52 | Concrete/General purpose |
| 36" | 900mm | 40*4.8 | 10/12mm | 60 | Concrete/General purpose |
Company Information
WUHAN WAN BANG LASER DIAMOND TOOLS CO.,LTD, a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999.
As a leading manufacture in professional diamond tools,Wan bang specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our products including:
Laser welded diamond saw blades for general purpose, concrete, wall, asphalt, brick, Laser welded diamond core bit for wall, reinforced concrete and engineering construction.
Diamond saw blades for granite, marble, sandstone, concrete, Diamond hot-pressed (sintered) blades, Diamond electroplated blades, Ring saw, Wire saw, Tuck point blades, Diamond cup wheel and all size of segments for circular saw, core bits, gangsaw , wire saw and so on...
Certificates
This product is used for processing stone and concrete materials.The common processing methods are as follows:
Cutting off the edges of slab,Edging with bevel shape,Rough finishing the irregular surface and profile.Laser welding is adopted to greatly enhance the strength between the segment and the steel body,and the safety is very reliable.
Factory&Workshop
