| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 600mm |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case/wooden case/pallet |
| Delivery Time: | 10-15 days delivery time |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Finishing: | Painting,Other | Type: | Laser Welded Diamond Asphalt Saw Blade |
|---|---|---|---|
| Color: | Customizable/red/orange/green/blue/black/white | Application: | Granite,Concrete,stone,marble |
| Product Name: | Diamond Saw Blade | Advantage: | Heat Resistance,Fast Cutting Speed,durable |
| Usage: | Stone,Reinforced Concrete Structure,General Purpose,Construction Cutting | Feature: | Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge |
| Process: | Laser Welded | Material: | High Quality Diamonds |
| Teeth: | 42 | Diameter: | 24"/600mm |
| High Light: | Laser Welded Diamond Saw Blade Disc,ISO Diamond Saw Blade Disc,600mm Asphalt Saw Blades |
||

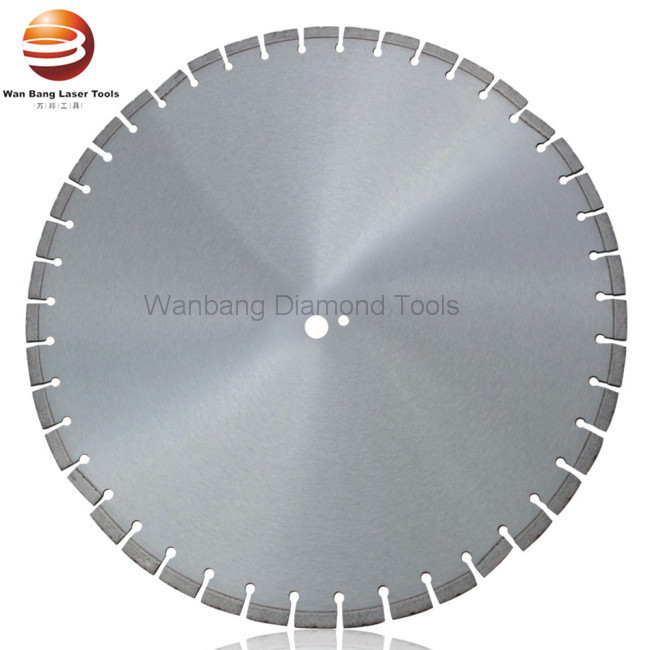

ISO 600mm mm Laser Welded Diamond Saw Blade Disc for Asphalt Cutting
Application: Asphalt, fresh concrete, green concrete, asphalt with concrete, cinder bricks, other abrasive materials
* Higher quality diamond and long life
* Dry or wet cutting
* Applicable for table saw, walk-behind saw, handhelded saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with drive pin holes standard. Custom arbor sizes are available.
* Radius protection seg., slant protection seg., high protection seg..
* Other special specifications and colors can be produced by clients' require
Specifications:
| Diameter | Seg. LxT(mm) | Seg. height | Seg.No. | Cutting Materials | |
| 24" | 600mm | 40*4.0 | 10/12mm | 42 | Asphalt/fresh concrete |
| 26" | 650mm | 40*4.2 | 10/12mm | 42 | Asphalt/fresh concrete |
| 28" | 700mm | 40*4.6 | 10/12mm | 45 | Asphalt/fresh concrete |
| 32" | 800mm | 40*4.8 | 10/12mm | 52 | Asphalt/fresh concrete |
| 36" | 900mm | 40*4.8 | 10/12mm | 60 | Asphalt/fresh concrete |
Certificates
Company Information
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
