| Place of Origin: | China |
|---|---|
| Brand Name: | WANBANG |
| Certification: | ISO9001 |
| Model Number: | 152mm |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton case |
| Delivery Time: | 10-14 days delivery time |
| Payment Terms: | T/T |
| Color: | Customize | Use: | Masonry Drilling,for Concrete |
|---|---|---|---|
| Type: | Core Drill Bit | Material: | Diamond Core Drill Bits |
| Product Name: | Diamond Core Drill Bit | Application: | Drilling Holes,ceramic And Reinforced Concrete,marble Granite Title,For Concrete Granite Stone |
| Advantage: | Good Sharpness,Imporved Efficiency,Long Life,Quality And Price | Quality: | Top Grade |
| High Light: | 152mm Wet Diamond Core Drill Bits,Long Lifespan Diamond Core Drill Bits,Long Lifespan 152mm Diamond Drill Bits |
||

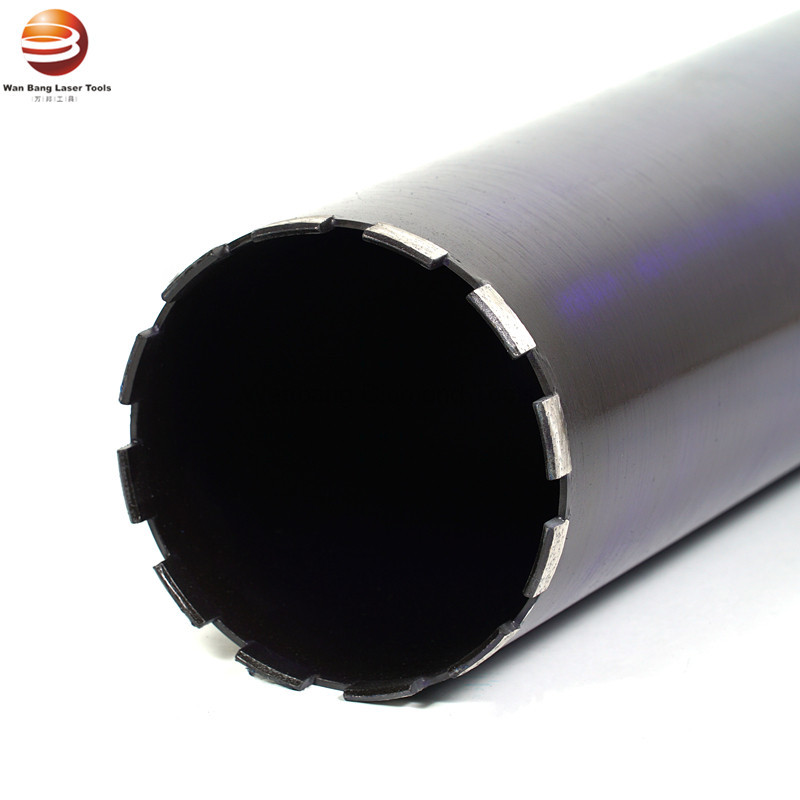

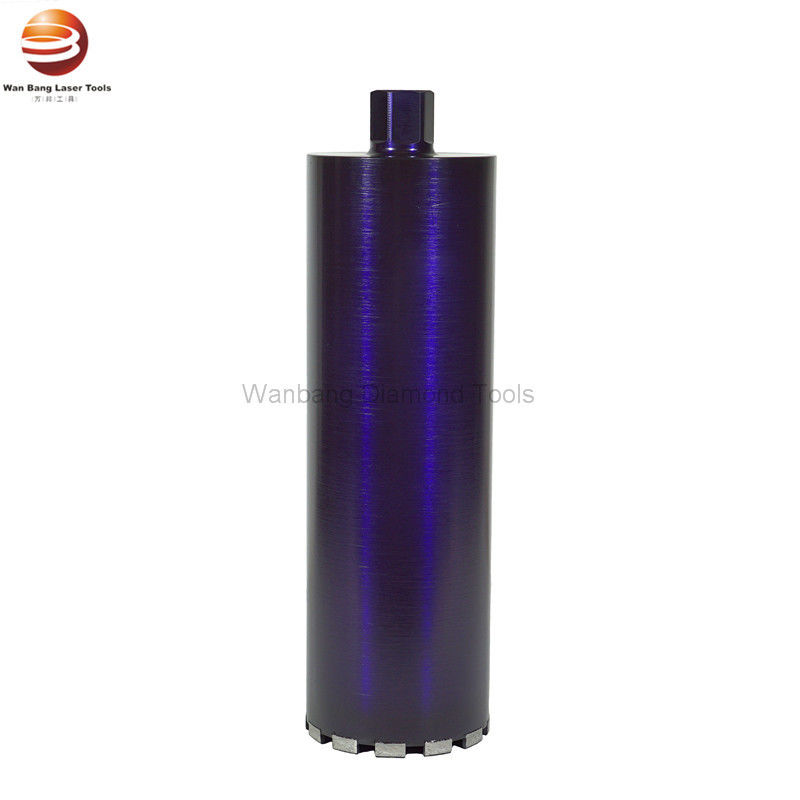

152mm Laser Welded Wet Diamond Core Drill Bits for Reinforced Concrete
Application:
Engineering construction, wall, concrete
* Thinner diamond segment and thinner tube wall can easily reduce the resistance and increase the drilling speed
* Provide 20% higher drilling performance in the widest range of heavily reinforced concrete, particularly in difficult operating conditions.
* Drilling stable with small wobbling.
* 16" and 18" drilling depth standard
* Superior cutting speed and long life in a variety of applications.
* Laser welded up to 20".
* Sharp "roof top" segments and "flat top" segments standard on 2" to 20" diameter.
Specifications:
| Core Drills for Wet Use | |||||
| Diameter+B349:G375 | Segments size | Thread | Drilling Depth | Quality Grade | Cutting materials |
| 42mm | 22*3.5*10 | 1- 1/4" UNC 1/2" BSP M14 M16 |
450mm | Pro. | Reinforced concrete |
| 52mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 62mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 72mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 82mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 92mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 102mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 112mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 122mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 127mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 132mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 142mm | 24*4.0*10 | 450mm | Pro. | Reinforced concrete | |
| 152mm | 24*4.0*10 | 450mm | Pro. | Reinforced concrete | |
| 162mm | 24*4.0*10 | 450mm | Pro. | Reinforced concrete | |
| 172mm | 24*4.0*10 | 450mm | Pro. | Reinforced concrete | |
| 182mm | 24*4.0*10 | 450mm | Pro. | Reinforced concrete | |
| 200mm | 24*4.0*10 | 450mm | Pro. | Reinforced concrete | |
| 225mm | 24*4.5*10 | 450mm | Pro. | Reinforced concrete | |
| 250mm | 24*4.5*10 | 450mm | Pro. | Reinforced concrete | |
| 300mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
| 350mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
| 400mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
| 450mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
| 500mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
| 550mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
| 600mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
